The iW610 digital synchronous rectifier controller works with all Renesas AC/DC converters and any flyback converter topology, including quasi-resonant (QR), Zero Voltage Switching (ZVS) and active clamp flybacks (ACF) operating in both DCM and CCM modes. The iW610 also works with resonant LLC converters. The device can be configured to operate in a low-side or high-side configuration without needing an external auxiliary winding. This enables the flexible configuration of the rectifier and the magnetics for the flyback design without adding cost when used in the high-side configuration.

The iW610 can sense up to 140V on the high-voltage drain of the MOSFET rectifier, which enables output voltage ranges from up to 28V without any external clamping circuitry.

iW610 Functional Block Diagram

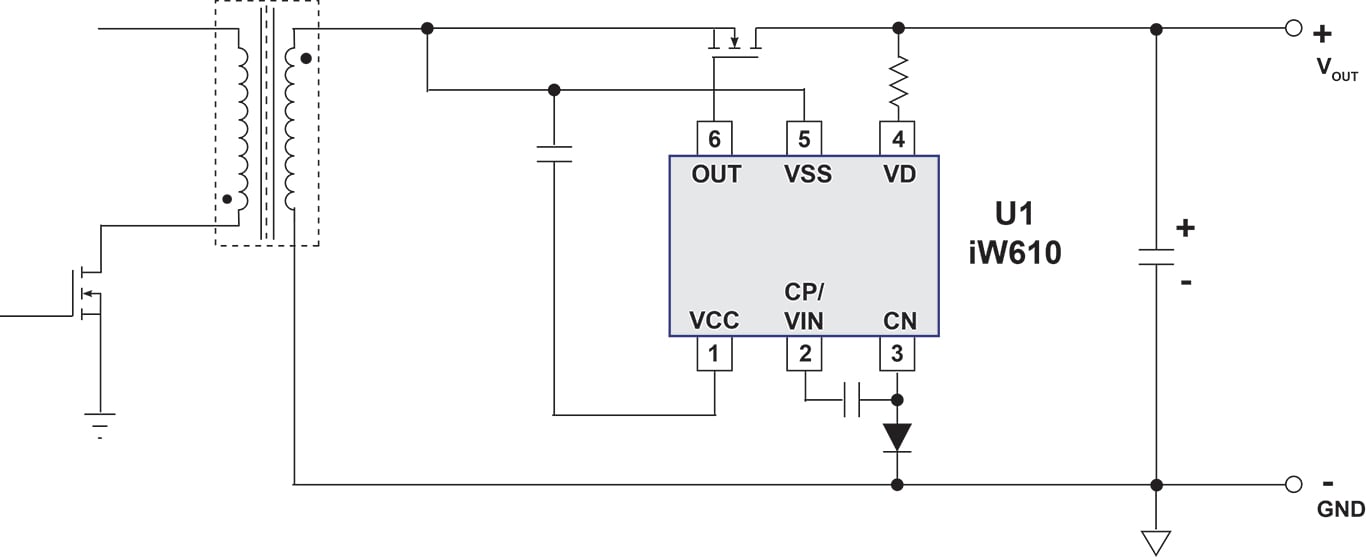

iW610 High-Side Typical Applications Diagram

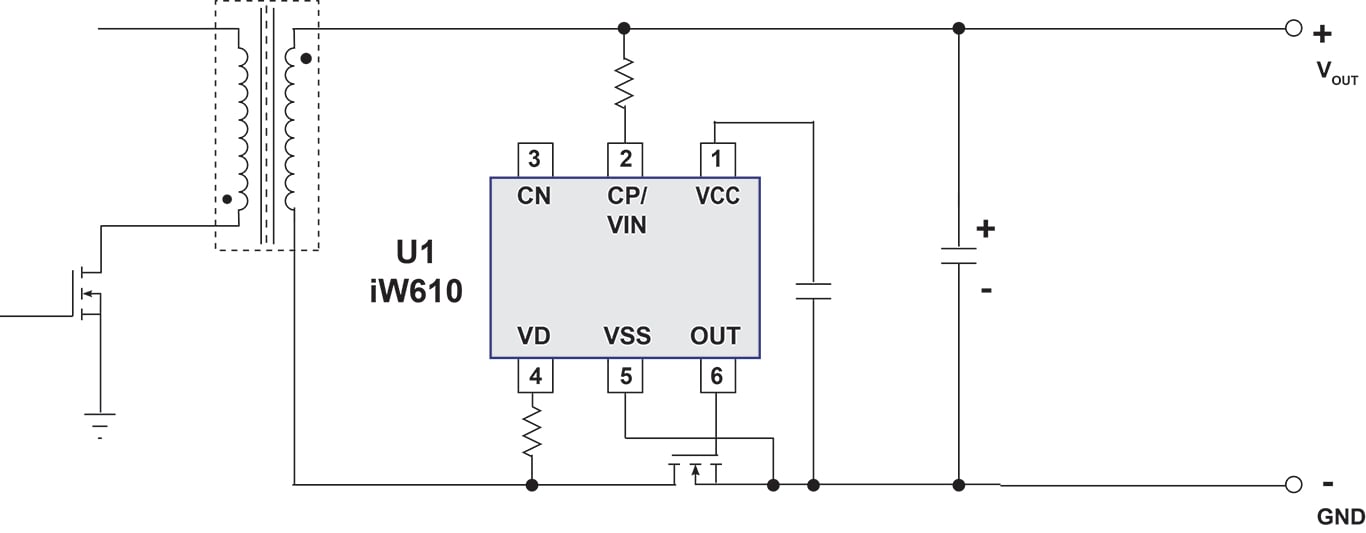

iW610 Low-Side Typical Applications Diagram

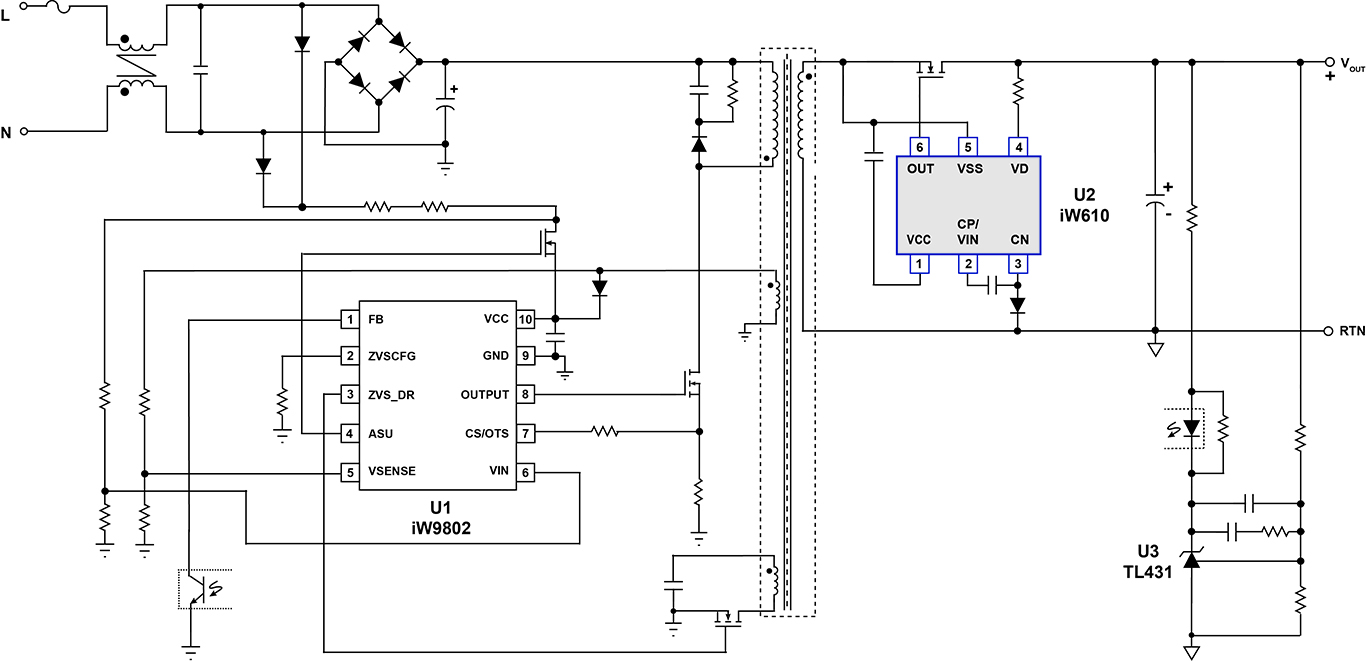

iW610+iW9802 Typical Applications Diagram
iW610 Functional Block Diagram
iW610 High-Side Typical Applications Diagram
iW610 Low-Side Typical Applications Diagram
iW610+iW9802 Typical Applications Diagram
  • Optimized for multiple flyback topologies, including QR, ZVS, ACF, and supports both CCM and DCM modes
  • Supports resonant LLC converters
  • High-side configuration without an auxiliary winding
    • Proprietary VVCC charging topology
  • Support low-side configuration
  • Broad output voltage range: 3V to 28V
  • Lossless VDS sensing circuit and driving control
  • Small, 6-pin SOT23 package

Applications

  • Compact AC/DC adapters/chargers for smartphones and tablets, including RapidCharge™ and Direct Charge
  • High-power AC/DC converters for industrial applications
  • TV and monitor power supplies

Documentation

Title Type Date
iW610 Product Summary
PDF465 KB
Product Brief
iW610 Datasheet
PDF637 KB
Datasheet

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Product Options

    Processing table
    Part Number
    Pkg. Type
    Carrier Type
    Buy / Sample
    iW610-05
    play_circleActive
    memory
    view_in_ar
    		SOT23-6L Tape & Reel
