Overview
Description

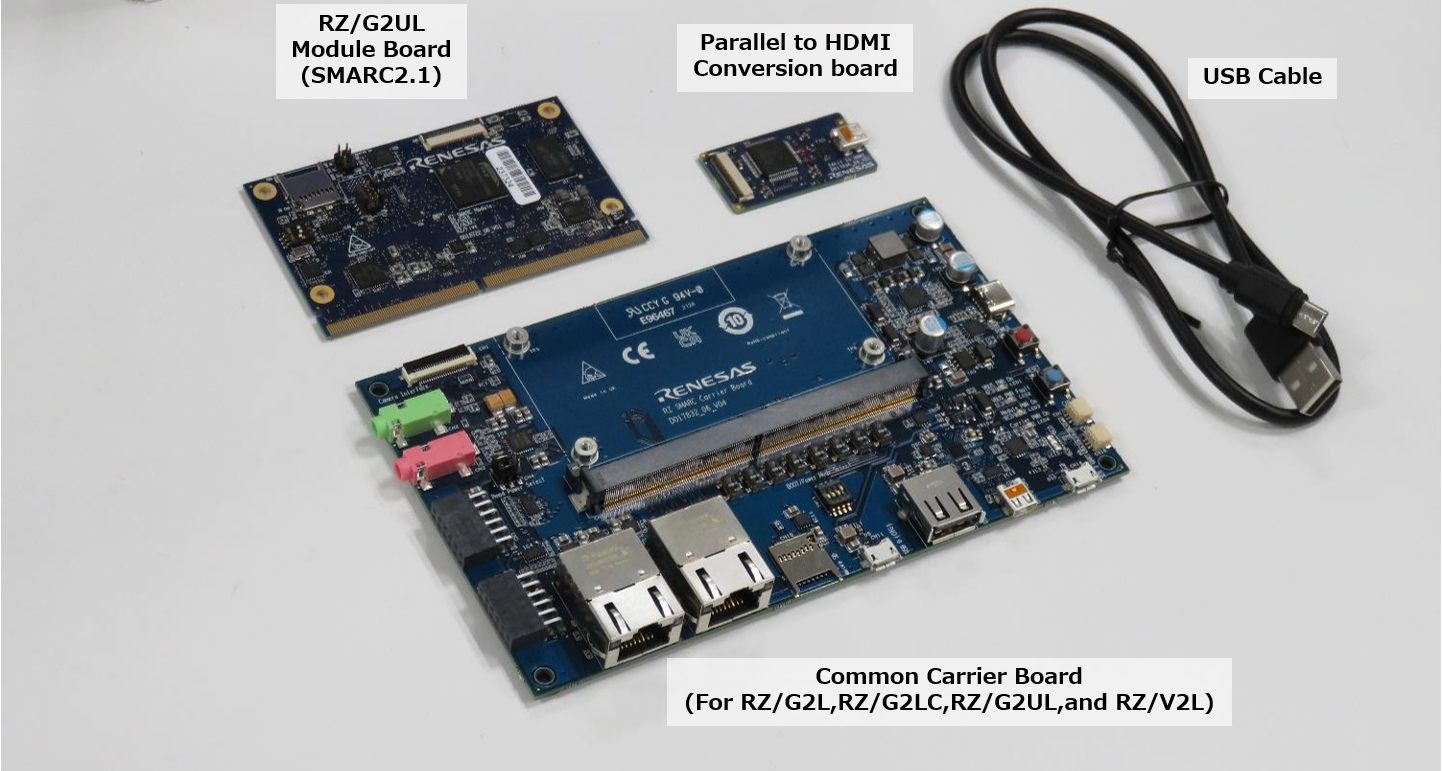

This evaluation board kit is ideal for evaluating RZ/G2UL (Type-1). The RZ/G2UL Evaluation Board Kit consists of a module board (SOM) and a carrier board. The module board complies with the SMARC v2.1 standard.
Features
- Device：RZ/G2UL (Type-1)
- Cortex-A55 Single, Cortex-M33
- BGA361pin, 13mmSq body, 0.5mm pitch
- Module Board Function
- DDR4 SDRAM: 1GB × 1pc
- QSPI flash memory: 128Mb × 1pc "AT25QL128A"
- eMMC memory: 64GB × 1pc
- The microSD card slot is implemented and used as an eSD for boot.
- 5-output clock oscillator “5P35023” implemented
- PMIC power supply “DA9062” implemented
- Carrier Board Function
- The FFC/FPC connector is mounted as standard for connection to high-speed serial interface for camera module.
- The Micro-HDMI connector via DSI/HDMI conversion module is mounted as standard for connection to high-speed serial interface for digital video module.
- The Micro-AB receptacle (ch0: USB2.0 OTG) and A receptacle (ch1: USB2.0 Host) are respectively mounted as standard for connection to USB interface.
- The RJ45 connector is mounted as standard for software development and evaluation using Ethernet.
- The audio codec is mounted as standard for advance development of audio system. The audio jack is implemented for connection to audio interface.
- The Micro-AB receptacles are implemented for connection to asynchronous serial port interface.
- The microSD card slot and two sockets for PMOD are implemented as an interface for peripheral functions.
- For power supply, a mounted USB Type-C receptacle supports the USB PD standard.
