Overview

Description

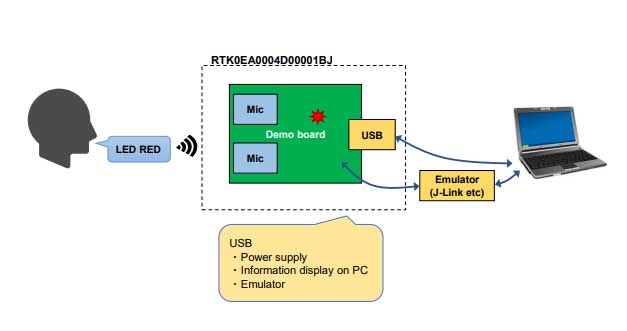

The RTK0EA0004D00001BJ is a demo board for a voice recognition remote control using RA6M1.

Features

  • Compact (60mm x 40mm)
  • Built-in MEMS microphone
  • Easy setup (can be powered by USB connection)
  • Built-in transmission interfaces (USB, emulator interface)

Applications

Documentation

Type Title Date
Application Note PDF 864 KB 日本語
1 item

Design & Development

Lab on the Cloud

Lab on the Cloud

Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.

This reference design recognizes voice commands to initiate a corresponding operation. It uses a high-performance Arm® Cortex®-M4 core-based RA6M1 MCU.

Lab on the Cloud

Lab on the Cloud

Renesas' Lab on the Cloud is an online environment where Renesas solutions, including popular evaluation boards, winning combinations and software, are hosted in a remote lab that customers access and test online.

This reference design recognizes voice commands to initiate a corresponding operation. It uses a high-performance Arm® Cortex®-M4 core-based RA6M1 MCU.
