To help designers realize these functions Renesas provides an extensive line up of microcontrollers designed specifically for use in indoor and outdoor air conditioning units and for use in remote controls. The RX23T Group, the RL78/G13 Group and the RL78/G13A Group of low pin count microcontrollers with built-in MCU peripheral functions such as reset IC enables a low cost solution for inverter control in outdoor units, the RX130 Group, the RX230 Group, the RL78 Family and the RA4M1 Group are designed for indoor units, and the RL78/L12 Group and the RL78/L13 Group are for use in remote controls. Renesas delivers solutions optimized to customer requirements.

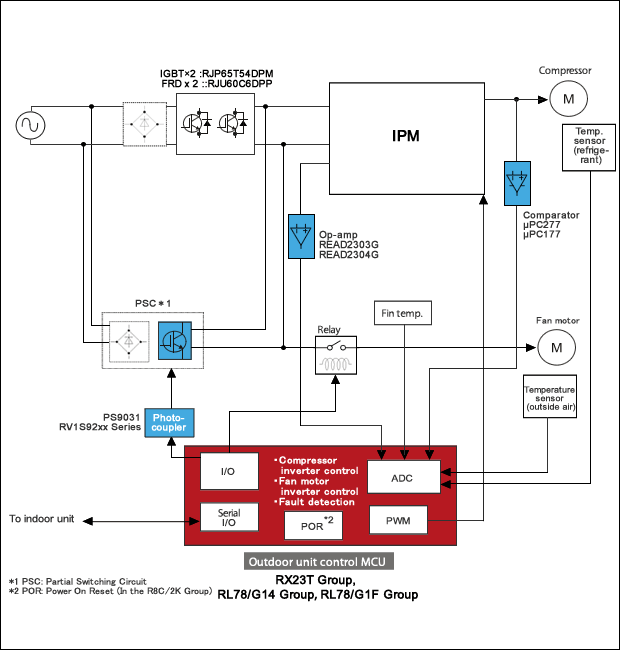

Air Conditioner Low Block Diagram
Air Conditioner (Low-End)

Related Products

Block Semiconductor Device Recommended Products Features
Remote Controller MCU RL78/L1x Series 16-bit MCU, Segment LCD controller/driver
Indoor Unit MCU RX130 Group
RX230 Group
Enhanced Capacitive Touch function, 5V operation
Enhanced DSP/FPU, Connectivity (USB), HMI (Capacitive Touch), Security, Low power consumption, 5V
RL78/G13 Group
RL78/G13A Group
5V operation, Rich line-up, can be used in a wide variety of applications
5V operation with low operating current
RA4M1 Group Arm Cortex-M4 with LCD Controller and Capacitive Touch for HMI
Outdoor Unit MCU RX23T Group
RX13T Group
RL78/G14 Group
RL78/G1F Group
32-bit MCU including on-chip FPU enables to easily program complex inverter control algorithms
32-bit MCU including on-chip FPU, single motor control applications, reduce board area and BOM costs
Three-phase complementary PWM output, Rich line-up
Multifunctional microcontrollers with enhanced functionality suitable for sensor-less BLDC motor control
IGBT
FRD
RJP65T54DPM
RJU60C6TDPP-AJ
Optimal IGBT for PFC, 650V 30A
Optimal FRD for PFC, 600V, 20A
Discrete
(Inverter)
Photocoupler
(IGBT drive)
PS9031
RV1S92xx Series
High isolation voltage (5kVr.m.s.), 2.5A output
High CMR (CMR.≧50kV/ µs), Optimal for IPM drive
MCU Peripheral Op-amp READ2303G
READ2304G
Full range input/output, high slew rate
Low power consumption, high slew rate
Comparator μPC277, μPC177 High input impedance, Low consumption current
TRIAC Control Photocoupler (standard) PS23xx Series
PS28xx Series
RV1S22xx Series
High isolation voltage (5kVr.m.s.), 4p-LSOP, Ta=115°C
High isolation voltage (2.5kVr.m.s.), 4p-SSOP, Ta=100°C
High isolation voltage (5kVr.m.s.), 4p-LSSOP, Ta=115°C
Interface in PFC Circuit Photocoupler
(IGBT drive)
PS9031
RV1S92xx Series
High isolation voltage (5kVr.m.s.), 2.5A output
High CMR (CMR.≧50kV/ µs), Optimal for IPM drive
