This winning combination solution is for a barcode scanner system. It can read 1D and 2D barcodes via an integrated image-based scanner with optional object detection using a fast image processor based on dual Arm® Cortex®-A55 core. The barcode information can be shared through RS-232, USB or wireless communication.

The system can be based on a variety of processors from the RZ microprocessor family depending on the end application.

System Benefits​:

  • Image-based scanner capable of reading 1D and 2D barcodes with optional object detection using dual-core Cortex-A55 with optional built-in AI accelerator (DRP-AI)
  • Capability to scan code under different ambient light conditions, using illumination flash LEDs
    • IR LED to avoid flashing on the eyes while illuminating images
    • Red LED instead of laser for aiming and safer operation
  • Saves power by relying on a proximity sensor to wake up the system from standby mode when any object is nearby
  • Integrated Bluetooth® Low Energy (LE) for sharing information efficiently

Target Applications:

  • Handheld 2D barcode scanners
  • Fixed barcode scanners

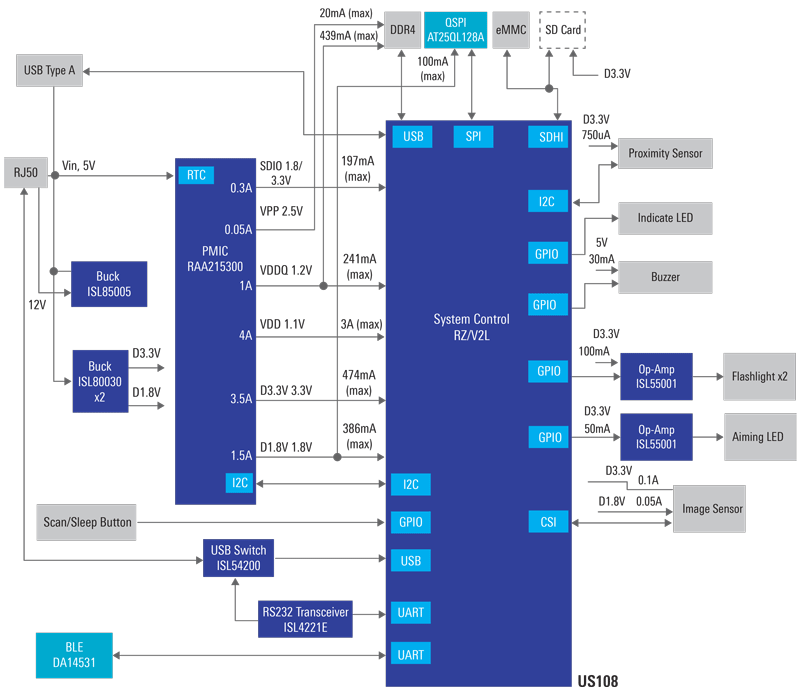

Barcode Scanner System
Legend for Renesas/Dialog System Diagrams

Related Products

Product Description Featured Document Ordering

Buck Regulator
ISL80030 3A Synchronous Buck Converter in 2x2 DFN Package Datasheet Buy/Sample
ISL85005 4.5V to 18V Input, 5A High Efficiency Synchronous Buck Regulator Datasheet Buy/Sample

Memory
AT25QL128A SPI Serial Flash Memory with Dual I/O, Quad I/O and QPI Support Datasheet Buy/Sample

Microprocessors
RZ/G2L General-Purpose Microprocessor with Dual-Core Arm® Cortex®-A55 (1.2GHz) CPU, 3D Graphics and Video Codec Engine User's Manual Buy/Sample
RZ/G2LC General-Purpose Microprocessors with Dual-Core Arm Cortex-A55 (1.2 GHz) CPUs, with 3D Graphics User's Manual Buy/Sample
RZ/V2L General-Purpose Microprocessor Equipped With Renesas' Original AI-Dedicated Accelerator "DRP-AI", 1.2GHz Dual-Core Arm Cortex-A55 CPU, 3D Graphics, and Video Codec Engine User's Manual Buy/Sample

Operational Amplifier
ISL55001 High Supply Voltage 220MHz Unity-Gain Stable Operational Amplifier Datasheet Buy/Sample

Power Management IC (PMIC)
RAA215300 High-Performance 9-Channel PMIC Supporting DDR Memory, with Built-In Charger and RTC Datasheet Buy/Sample

RS-232 Serial Interface
ISL4221E QFN Packaged, ±15kV ESD Protected, +2.7V to +5.5V, 150nA, 250kbps, RS-232 Transmitters/Receivers Compliant with ElA/TIA-232 and V.28/V.24 Specifications Datasheet Buy/Sample

System-on-Chip (SoC)
DA14531 World’s Smallest and Lowest Power Bluetooth 5.1 System-on-Chip Datasheet Buy/Sample

USB Switch
ISL54200 USB 2.0 High/Full-Speed Multiplexer Datasheet Buy/Sample
