General-purpose Microprocessors with Dual-core Arm® Cortex®-A55 (1.2 GHz) CPUs and Single-core Arm® Cortex®-M33 (200 MHz) CPU, with 3D Graphics and Video CODEC Engine
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description

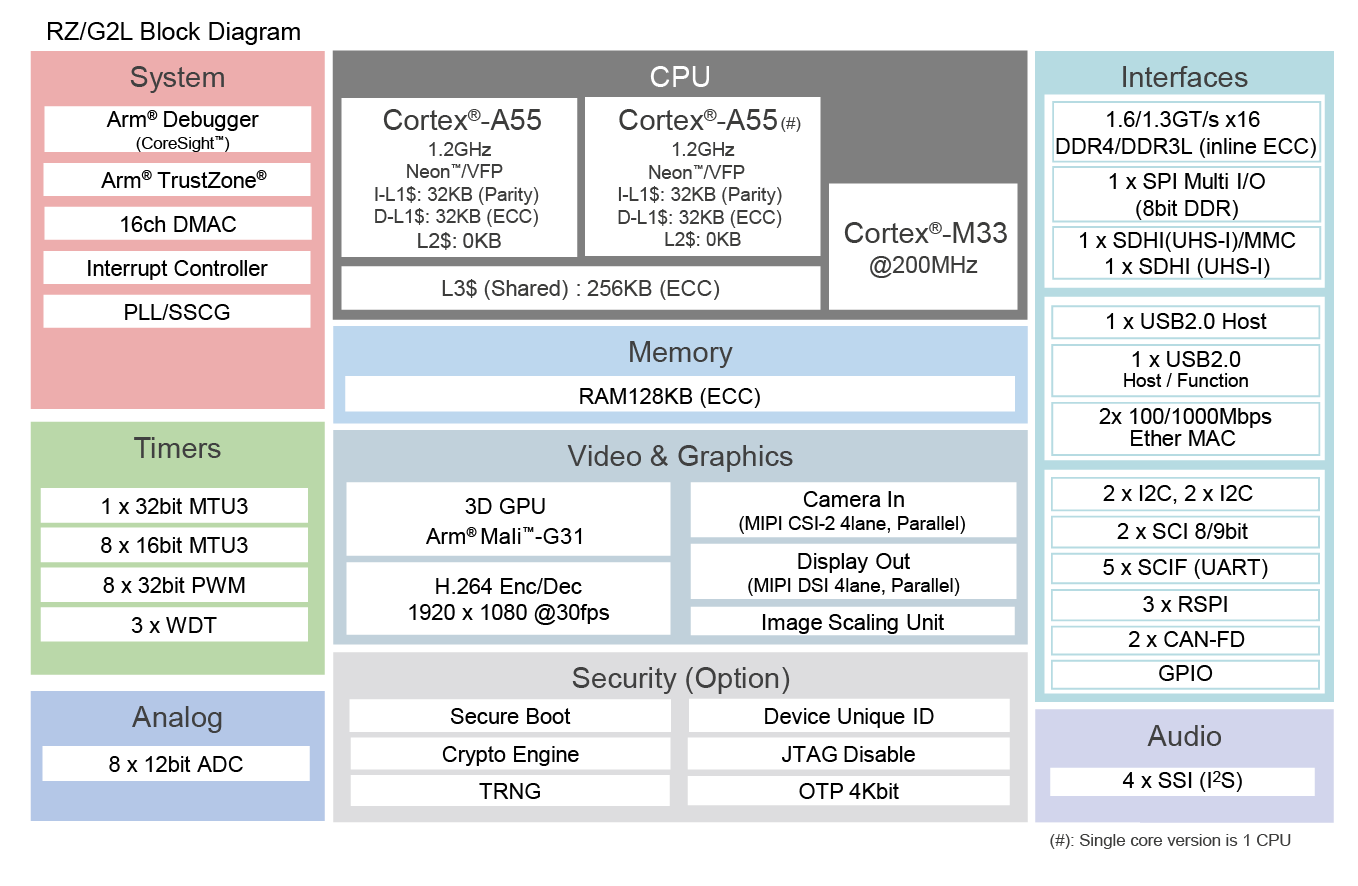

The RZ/G2L microprocessor includes a Cortex®-A55 (1.2 GHz) CPU, 16-bit DDR3L / DDR4 interface, 3D graphics engine with Arm Mali-G31 and video codec (H.264). It also has many interfaces such as camera input, display output, USB 2.0, and Gbit-Ether, making it ideal for applications such as entry-class industrial human-machine interfaces (HMIs) and embedded devices with video capabilities.
Features
- Cortex-A55 (Dual or Single)
- Cortex-M33
- 3D Graphics engine (Arm Mali-G31)
- Video Codec (H.264)
- Camera interface (MIPI-CSI or Parallel-IF)
- Display interface (MIPI-DSI or Parallel-IF)
- USB2.0 interface 2ch、SD interface 2ch
- CAN interface (CAN-FD)
- Giga bit Ethernet 2ch
- Memory error detection / correction (ECC)
- DDR4 or DDR3L Memory interface
- BGA Package (15x15mm, 21x21mm)
Comparison
| RZ/G2L | RZ/G2LC | RZ/G2UL | |
| CPU | Cortex-A55 x 2 + Cortex-M33 x 1 | Cortex-A55 x 2 + Cortex-M33 x 1 | Cortex-A55 x 1 + Cortex-M33 x 1 |
| Lead Count (#) | 551 | 361 | 361 |
| Operating Freq (Max) (MHz) | 1200 | 1200 | 1000 |
| GPU | Arm Mali-G31 | Arm Mali-G31 | - |
| View Product | View Product |
Applications
Applications
- Industrial HMI+Video
- Intercom/Doorbell
- POS terminal
- Home appliance
- Home security camera
Documentation
| Title | Type | Date | |
|---|---|---|---|
ZIP37.74 MB
|
Manual - Hardware
|
||
Guide
|
|||
Flyer
|
|||
Related Files:
|
Application Note
|
||
PDF240 KB
|
Application Note
|
||
ZIP1.02 MB
|
Application Note
|
||
PDF6.75 MB
|
Application Note
|
||
ZIP996 KB
|
Application Note
|
||
PDF604 KB
|
Application Note
|
||
PDF172 KB
|
Application Note
|
||
PDF1.08 MB Related Files:
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
PDF209 KB
|
Application Note
|
||
PDF316 KB
|
Application Note
|
||
Application Note
|
|||
PDF432 KB
|
Application Note
|
||
ZIP198.77 MB
|
Application Note
|
||
PDF162 KB
|
Application Note
|
||
PDF165 KB
|
Application Note
|
||
PDF191 KB
|
Application Note
|
||
PDF713 KB
|
Application Note
|
||
PDF413 KB
|
Application Note
|
||
Application Note
|
|||
Brochure
|
|||
Brochure
|
|||
General Reliability Literature
|
|||
PDF2.12 MB
|
Guide
|
||
ZIP3.70 MB
|
Manual - Development Tools
|
||
PDF2.65 MB
|
Manual - Development Tools
|
||
PDF522 KB
|
Manual - Hardware
|
||
ZIP10.81 MB
|
Manual - Software
|
||
PDF1.01 MB
|
Manual - Software
|
||
Other
|
|||
Other
|
|||
PDF411 KB
|
Product Reliability Report
|
||
PDF388 KB
|
Release Note
|
||
PDF427 KB
|
Release Note
|
||
PDF3.02 MB
|
Release Note
|
||
PDF317 KB
|
Release Note
|
||
PDF188 KB
|
Release Note
|
||
PDF386 KB
|
Release Note
|
||
PDF429 KB
|
Release Note
|
||
PDF1001 KB Related Files:
|
Release Note
|
||
PDF2.64 MB
|
Release Note
|
||
PDF1.08 MB
|
Release Note
|
||
PDF554 KB
|
Release Note
|
||
PDF800 KB
|
Release Note
|
||
PDF571 KB
|
Release Note
|
||
PDF313 KB
|
Release Note
|
||
PDF389 KB
|
Release Note
|
||
PDF1.09 MB
|
Release Note
|
||
PDF615 KB
|
Release Note
|
||
Release Note
|
|||
PDF973 KB Related Files:
|
Release Note
|
||
PDF1.09 MB
|
Release Note
|
||
PDF452 KB
|
Release Note
|
||
Release Note
|
|||
PDF517 KB
|
Release Note
|
||
PDF581 KB
|
Release Note
|
||
Release Note
|
|||
PDF2.87 MB
|
Release Note
|
||
Release Note
|
|||
PDF369 KB
|
Release Note
|
||
PDF358 KB
|
Release Note
|
||
PDF2.32 MB
|
Release Note
|
||
PDF681 KB
|
Release Note
|
||
Release Note
|
|||
Release Note
|
|||
PDF3.00 MB
|
Release Note
|
||
Release Note
|
|||
PDF1.30 MB
|
Release Note
|
||
PDF429 KB
|
Technical Update
|
||
PDF535 KB
|
Technical Update
|
||
PDF256 KB
|
Technical Update
|
||
PDF334 KB
|
Technical Update
|
||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
White Paper
|
Design & Development
Software & Tools
Software & Tools
| e² studio -information for RZ FamilyEclipse-based Renesas integrated development environment (IDE). | IDE and Coding Tool | Renesas |
| Sensor Software Modules for Renesas MCU PlatformsMiddleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products. Downloads: | Sensor | Renesas |
| RZ MPU Graphics Library Evaluation Version for RZ/G2L and RZ/G2LCRZ MPU Graphics Library for RZ/G2L and RZ/G2LC. You can use the graphics function on them by building according to the integration guide which is enclosed in the download file. | Software Package | Renesas |
| RZ MPU HTML5 (Gecko) Package V1.2 for Verified Linux Packages [5.10-CIP]HTML5 (Gecko) package for RZ/G. This package is used in combination with the Linux package provided for the device. | Software Package | Renesas |
| RZ MPU Security PackageSecurity Package for MPUs of the RZ/G2L Group and RZ/V2L. This package is used in combination with the Linux package provided for each device. | Software Package | Renesas |
| RZ MPU Video Codec Library Evaluation Version for RZ/G2LThis product provides the RZ MPU Video Codec Library for the RZ/G2L. You can use the decoder/encoder on them by building according to the integration guide which is enclosed in the download file. | Software Package | Renesas |
| RZ/G Verified Linux Package [5.10-CIP]Linux Packages for MPUs of the RZ/G2 Group. Functions of this products have been verified and regular maintenance is also provided. | Software Package | Renesas |
| RZ/G2L and RZ/G2UL Group Multi-OS PackageRZ/G2L CM33 Multi-OS Package is the software package consisting of Flexible Software Package (FSP) as software package for Renesas MCU with Arm® Cortex-M Core and OpenAMP as standardization API of framework for interprocessor communication for developing multi OS solution. | Software Package | Renesas |
| RZ Smart ConfiguratorRZ Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.Downloads: | Solution Toolkit | Renesas |
Software Downloads
| Title | Type | Date | |
|---|---|---|---|
ZIP21.68 MB
|
PCB Design Files
|
||
ZIP5.72 MB
|
PCB Design Files
|
||
ZIP2.92 MB Related Files:
|
Software & Tools - Other
|
||
Software & Tools - Other
|
|||
ZIP3.81 MB
|
Software & Tools - Software
|
||
7Z2,213.93 MB
|
Software & Tools - Software
|
||
EXE33.62 MB
|
Software & Tools - Software
|
||
ZIP14.36 MB Related Files:
|
Software & Tools - Software
|
||
Software & Tools - Software
|
|||
ZIP526 KB
|
Software & Tools - Software
|
Sample Code
Sample Code
| Title | Type | Date | |
|---|---|---|---|
[Software=FSP|v4.0.0;RX Driver Package|v1.35],[Toolchains=GNU ARM Embedded|v10.3.1.20210824;CC-RX|v3.02.00;GNURX|8.3.0.202004;CC-RL|v1.10.00;GNURL|4.9.2.202103;]
ZIP179.17 MB Related Files:
Application: IoT Applications Compiler: CC-RX, CC-RL, ICCRX, ICCRL78, GNURL78, GNURX, ICCARM, GNU ARM Embedded Function: Communication Interface, Application Example IDE: e2 studio, IAR EWRX, IAR EWRL78, IAR EWARM |
Sample Code |
||
Sample Code |
Boards & Kits
Boards & Kits
RZ/G2L Evaluation Board Kit
This evaluation board kit is ideal for evaluating RZ/G2L. The RZ/G2L Evaluation Board Kit consists of a module board (SOM) and a carrier board. The carrier board can be...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Main CPU |
Operating Freq (Max) (MHz) |
Bit Size |
Sub CPU |
RAM (KB) |
Lead Count (#) |
Memory Interface |
GPU |
Accelerator |
PCIe Revision |
CAN (ch) |
Ethernet |
USB |
I/O Ports |
Pkg. Type |
Temp. Range |
PLP |
Data Flash (KB) |
RTC |
DMA |
Timer |
ADC |
Human Machine Interface |
Security & Encryption |
Supply Voltage (V) |
CPU |
Series Name |
Buy / Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cortex-A55 x 2 | 1200 | 64 | Cortex-M33 | 128 | 551 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | - | 2.97 - 3.63 | Cortex-A55 x 2 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 x 2 | 1200 | 64 | Cortex-M33 | 128 | 551 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | - | 2.97 - 3.63 | Cortex-A55 x 2 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 | 1200 | 64 | Cortex-M33 | 128 | 551 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H,1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | - | 2.97 - 3.63 | Cortex-A55 x 1 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 | 1200 | 64 | Cortex-M33 | 128 | 551 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | - | 2.97 - 3.63 | Cortex-A55 x 1 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 x 2 | 1200 | 64 | Cortex-M33 | 128 | 456 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H,1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | - | 2.97 - 3.63 | Cortex-A55 x 2 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 x 2 | 1200 | 64 | Cortex-M33 | 128 | 456 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | - | 2.97 - 3.63 | Cortex-A55 x 2 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 | 1200 | 64 | Cortex-M33 | 128 | 456 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H,1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | - | 2.97 - 3.63 | Cortex-A55 x 1 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 | 1200 | 64 | Cortex-M33 | 128 | 456 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H,1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | - | 2.97 - 3.63 | Cortex-A55 x 1 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 x 2 | 1200 | 64 | Cortex-M33 | 128 | 551 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | Cortex-A55 x 2 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 x 2 | 1200 | 64 | Cortex-M33 | 128 | 551 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | Cortex-A55 x 2 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 x 2 | 1200 | 64 | Cortex-M33 | 128 | 456 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | Cortex-A55 x 2 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 x 2 | 1200 | 64 | Cortex-M33 | 128 | 456 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | Cortex-A55 x 2 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 | 1200 | 64 | Cortex-M33 | 128 | 551 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | Cortex-A55 x 1 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 | 1200 | 64 | Cortex-M33 | 128 | 456 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H,1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | Cortex-A55 x 1 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 | 1200 | 64 | Cortex-M33 | 128 | 456 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H,1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | Cortex-A55 x 1 + Cortex-M33 x 1 | RZ/G | |||
| Cortex-A55 | 1200 | 64 | Cortex-M33 | 128 | 551 | DDR3L-1333, DDR4-1600 (16-bit) | Arm Mali-G31 | - | - | 2 | 10/100M/1G x 2 ch | USB2.0 ×2 ch (1H, 1H/F/OTG) | 123 | -40 to 85°C | 2032 Jul | 0 | No | Yes | 16-bit x 8-ch, 32-bit x 1-ch | 12-bit x 8-ch | Display Function | AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG | 2.97 - 3.63 | Cortex-A55 x 1 + Cortex-M33 x 1 | RZ/G |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Companion Products
play_circle_filledVideos & Training
Online Training on RZ/G2L and RZ/G2LC 64-bit Arm®-based MPUs
Video List
News & Blog Posts
| Solution for BOM Cost Reduction of the RZ/G2L MPU | Blog Post | Nov 19, 2021 | |
| Faster Evaluation Process with Unified and Scalable SMARC EVK Platform (Evaluation Board Kit Platform) | Blog Post | Oct 20, 2021 |
