概要

HI-200/HI-201 (dual/quad) are monolithic devices comprising independently selectable SPST switches which feature fast switching speeds (HI-200 240ns, and HI-201 185ns) combined with low power dissipation (15mW at 25°C). Each switch provides low ON resistance operation for input signal voltage up to the supply rails and for signal current up to 80mA. Rugged DI construction eliminates latch-up and substrate SCR failure modes. All devices provide break-before-make switching and are TTL and CMOS compatible for maximum application versatility. HI-200/HI-201 are ideal components for use in high frequency analog switching. Typical applications include signal path switching, sample and hold circuit, digital filters, and operational amplifier gain switching networks.

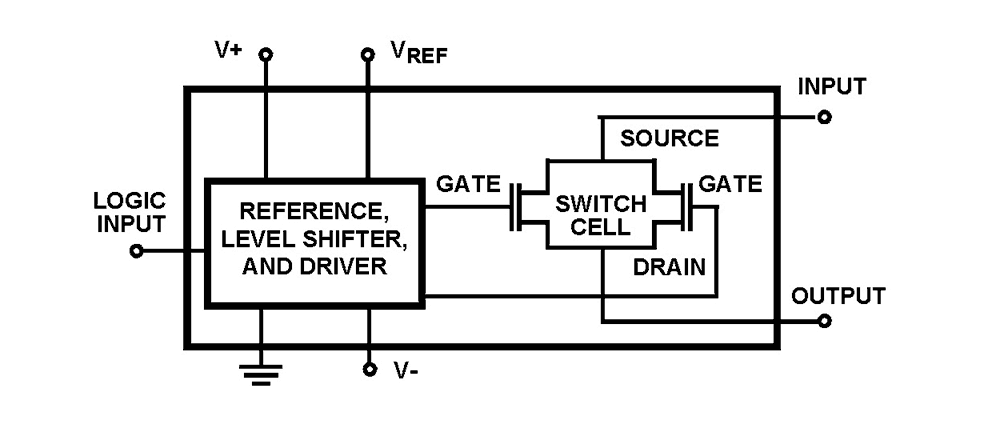

HI-201 Functional Diagram
HI-201 Functional Diagram
  • Pb-Free Available (RoHS Compliant)
  • Analog Voltage Range ±15V
  • Analog Current Range 80mA
  • Turn-On Time 240ns
  • Low rON 55Ω
  • Low Power Dissipation 15mW
  • TTL/CMOS Compatible

アプリケーション

  • High Frequency Analog Switching
  • Sample and Hold Circuits
  • Digital Filters
  • Operational Amplifier Gain Switching Networks

ドキュメント

タイトル 分類 日付
HI-200, HI-201 Datasheet
PDF614 KB
データシート
AN532: Common Questions Concerning CMOS Analog Switches
PDF313 KB
アプリケーションノート
AN557: Recommended Test Procedures for Analog Switches
PDF468 KB
アプリケーションノート
AN9867: End of Life Derating: A Necessity or Overkill
PDF338 KB
アプリケーションノート
AN1034: CMOS Analog Multiplexers and Switches, Applications Considerations
PDF300 KB
アプリケーションノート
AN520: CMOS Analog Multiplexers and Switches; Specifications and Application Considerations
PDF270 KB
アプリケーションノート
AN9402: Keeping the HI-0201 Switch Closed When Removing the V+ Supply
PDF201 KB
アプリケーションノート
アナログIC　カタログ
PDF5.10 MBEnglish
カタログ
Intersil Space Products Brochure
PDF4.89 MB
カタログ
Intersil Commercial Lab Services
PDF364 KB
カタログ
PIN19006 - Price Increase for the Listed Renesas Electronics America Products
PDF257 KB
Price Increase Notice
PIN17006 - Q1 2017 Price Increase
PDF227 KB
Price Increase Notice
PA14064 - Minimum Line Quantity Change
PDF282 KB
Product Advisory
PCN12085 - 8l, 14l, 16l SOIC w/ Gold Bond Wire @ ATP as Alternate Assembly Site
PDF152 KB
製品変更通知
PCN12086 - Alternate Manufacturing Site for Assembly of the Listed Intersil PDIP Packaged Products -Amkor Technology, Philippines (ATP)
PDF86 KB
製品変更通知
PCN11039 - Manufacturing Site Change for Assembly of Intersil Ceramic Dual-In-Line (Frit Seal Cerdip) Products - Amkor (ATP) Muntinlupa City, Philippines
PDF147 KB
製品変更通知
