Relative Humidity and Temperature Sensor, Analog Output, ±2.5% RH
ページセクションへ移動：
Back to top
ECADモデルを調べる
概要
Description
The HS4103 is a highly accurate, ultra-low power, fully calibrated relative humidity and temperature sensor. The MEMS sensor features a proprietary sensor-level protection ensuring high reliability and long-term stability. The HS4103 is fully calibrated and temperature compensated with an Analog ratio-metric output.
特長
- Humidity range: 0% to 100%RH
- RH accuracy: ±2.5%RH, typical
- 10% to 90% ratio-metric analog output
- Fast RH response time: 4 seconds, typical
- Temperature sensor accuracy: ±0.25°C, typical (0 to +70°C)
- Low current consumption: 0.92µA average (3.3V supply)
- Excellent stability against aging
設計・開発
ボード＆キット
ボード＆キット
HS4101 Relative Humidity and Temperature Sensor Evaluation Kit
The HS4100-EVK Evaluation Kit is used to assess the HS4101 High-Performance Relative Humidity and Temperature Sensor, with Analog output. The hardware allows users to...
主要ドキュメント:
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table

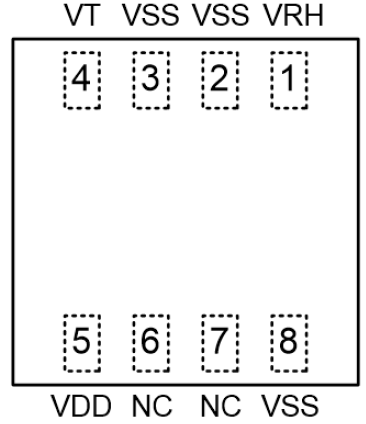

| LGA | 8 | -40 to 105°C | Yes | Cut Tape | サンプルを入手, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledビデオ&トレーニング
HS4xxx温湿度センサの概要
ルネサスのHS4xxx温湿度センサファミリは、高精度、高速な応答時間、低消費電力を提供することでポータブルアプリケーションから過酷な環境向け製品にも最適です。
