Vertical Mount Air Velocity Sensor Pmod™ Board (Renesas Quick-Connect IoT)
ページセクションへ移動：
Back to top
概要
Description

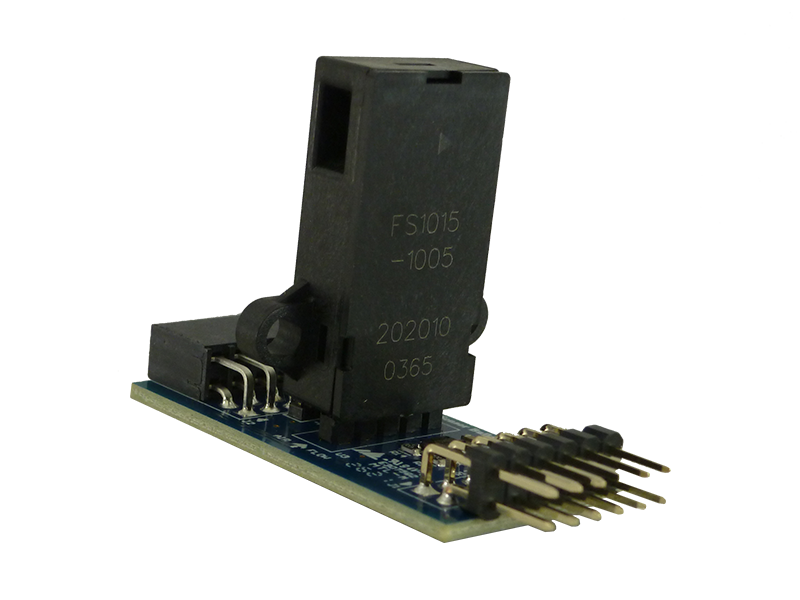

The US082-FS1015EVZ Board enables quick prototyping of the FS1015 mass air velocity sensor module for a custom system design. The board provides a standard PmodTM Type 6A (Extended I2C) connection for the on-board sensor to plug into any MCU evaluation kit with a matching connector.

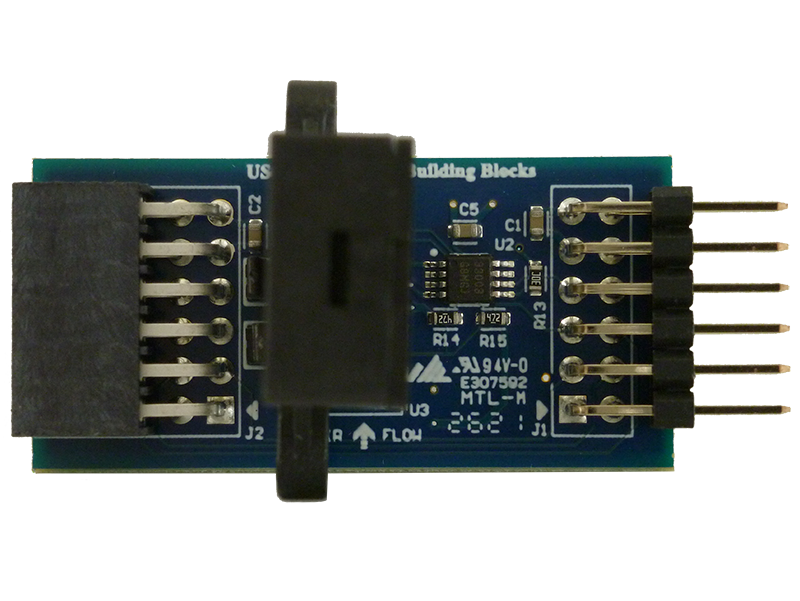

The US082-FS1015EVZ features Pmod connectors on both sides of the board allowing additional Type 6/6A boards to be connected in a daisy-chained solution with multiple sensors on the same MCU Pmod connector. Thanks to the standard connector and software support, the US082-FS1015EVZ is ideal for Renesas’ Quick-Connect IoT to rapidly create an IoT system.
特長
- FS1015 sensor sample mounted:
- Thermo-transfer (calorimetric) principle utilizes MEMS thermocouples to measure flow, which provide excellent signal-to-noise ratio
- Silicon-carbide coating protects from abrasive wear and water condensation
- Digital and analog outputs
- Resistant to vibration and pressure shock
- Standardized Type 6A PmodTM connector supports I2C Extended interface
- Dual connectors allow pass-through signals for daisy-chained solutions
設計・開発
ソフトウェア／ツール
ソフトウェア／ツール
| Quick-Connect IoT PlatformQuick-Connect IoT platform enables fast prototyping by providing compatible hardware and software building blocks. | Other Hardware | ルネサス |
| センサソフトウェアルネサスセンサ製品の制御、データ取得を実現するミドルウェア(FITモジュール、FSPモジュール)、サンプルソフトウェアパッケージを提供します。 | Sensor | ルネサス |
| クイックコネクトスタジオQuick-Connect Studioは、オンラインのクラウドベースの設計プラットフォームであり、ユーザーは ハードウェアとソフトウェアをグラフィカルに構築してプロトタイプをすばやく検証できます。 | Software Package | ルネサス |
