Evaluation Board for F2923 SP2T with Constant Impedance, K|z|
The F2923EVBI is a fully populated evaluation board which allows the customer to easily evaluate the product.
“Thru” calibration connectors are conveniently located...
主要ドキュメント:
概要
説明
The F2923 is a low insertion loss 50Ω SP2T (SPDT) absorptive RF switch designed for a multitude of wireless and other RF applications. This device covers a broad frequency range from 300kHz to 8000MHz. In addition to providing low insertion loss, industry-leading isolation at 2GHz, and excellent linearity, the F2923 also includes a patent-pending constant impedance (K|z|) feature.
特長
- Constant Impedance K|z| during transition
- Very low insertion loss: 0.48dB at 2GHz
- High Input IP3: 66dB at 2GHz
- RF1/RF2 to RF_Com Isolation: 74dB at 2GHz

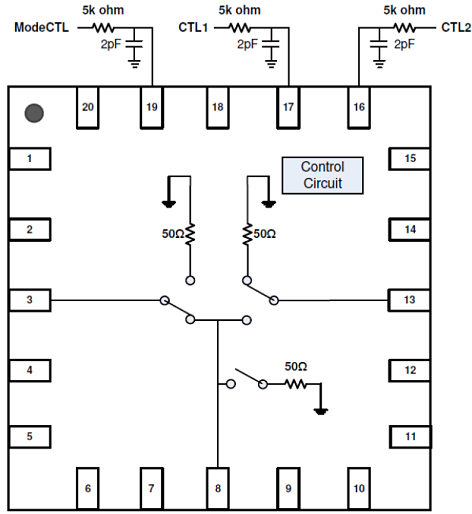

- 1-pin or 2-pin device control option
- Low DC current: 127µA using 3.3V logic
- Supports 1.8V and 3.3V control logic
- Extended temperature: -55 °C to +105 °C

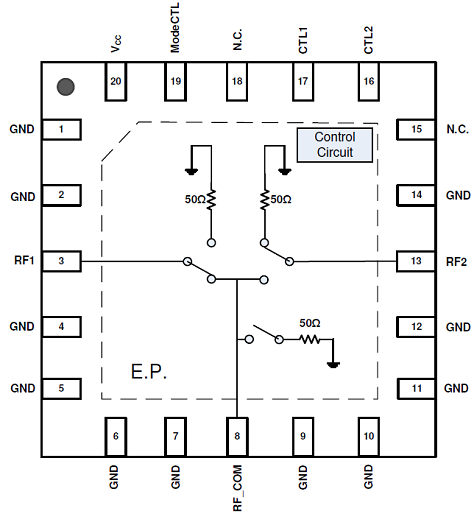

- 4mm x 4mm, 20-pin TQFN package
- Industry-standard footprint and pin compatible with the F2912
