The EXP7603 is a GaAs MMIC power amplifier designed for 50-Ohm systems, and specified for operation in the 71 to 76 GHz range of E-Band. The EXP7603 enables delivery of 26dBm RF output power when driven to 3 dB of gain compression, and maintains good linearity well below the onset of gain compression. Typical small-signal gain is 17dB with flatness of ±0.75dB over a 1.25GHz window. DC power consumption is as low as 2W. The EXP7603 also provides a built-in E-Band power detector and internally de-couples DC from RF input and output ports to simplify system-level design.

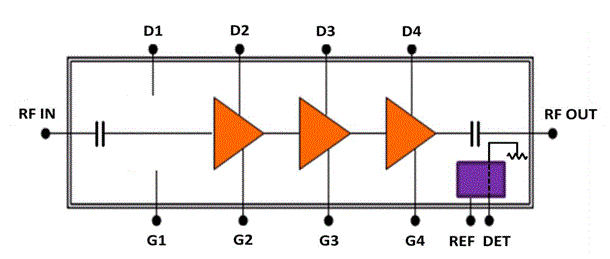

EXP7603 - Block Diagram
EXP7603 - Block Diagram
  • 71 to 76 GHz frequency range
  • 17dB nominal gain
  • 32.5dBm nominal IP3
  • 23.5dBm nominal P-1dB
  • 26dBm nominal P-3dB
  • 4V, 513mA nominal quiescent drain bias
  • 4.17mm x 1.87mm die size

ドキュメント

タイトル
分類 日付
EXP7603 Product Brief
PDF 695 KB 		製品概要
PLC# : 230010 End-of-Life (EOL) process on select part numbers
PDF 1.11 MB 		EOL通知
RF Product Selection Guide
PDF 2.19 MB 		ガイド
3 items

設計・開発

ソフトウェアダウンロード

タイトル
分類 日付
PLC# : 230010 End-of-Life (EOL) process on select part numbers
PDF 1.11 MB 		EOL通知
1 item

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    ご購入 / サンプル
    型名
    EXP7603-DNT
    block_flippedEOL品
    memory
    view_in_ar
    		WAFER C WFP
