8-Channel Dual-Polarization TRX Beamformer IC at 24.25GHz - 27.5GHz
ページセクションへ移動：
Back to top
ECADモデルを調べる
概要
Description

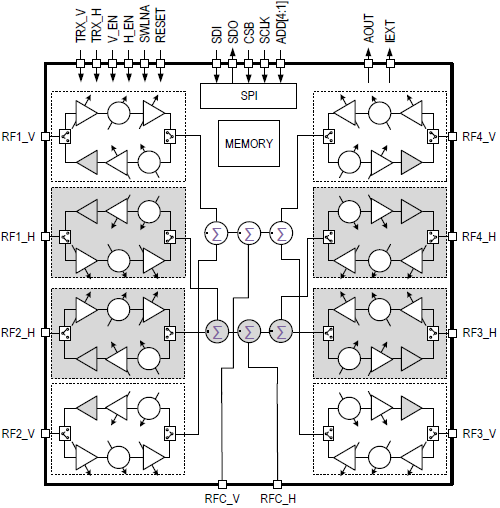

The F5268 is an eight-channel TRX silicon IC designed for dual polarization 5G phased-array applications at n258 band. This device provides more than 15.5dBm linear output power* in silicon for wide-band 5G-NR waveforms.
*Power level with < 3% EVM using 400MHz 5G-NR CP-OFDM waveform
特長
- 24.25GHz to 27.5GHz operation
- 8 radiation channels, beam-per-polarization
- Flexible output power and high efficiency with Dynamic Array Power (DAP™)
- ArraySense™ technology for real-time monitoring
- High-speed SPI control with RapidBeam™ technology
- 5.1mm × 5.1mm, 118-BGA package with exposed-die
- -40°C to +95°C ambient operating temperature range
アプリケーション
アプリケーション
設計・開発
ボード＆キット
ボード＆キット
Evaluation System for the F5268 8-Channel Dual-Polarization TRX Beamformer IC
The F5268 Evaluation System is designed to help users evaluate the Beamformer device. When connected to a PC running the software, the device can be configured and...
