概要

The iW337 is a secondary-side PWM signal generator that works with three types of dimming inputs: PWM dimming, 0V to 10V linear dimming, or simple dimming using a single resistor to ground from the DIM pin. The iW337 converts any of these three signals into a 1% to 100% PWM duty cycle that provides a dimming signal to a primary-side LED driver such as the iW3631, eliminating the need for transformers or other driver circuitry.

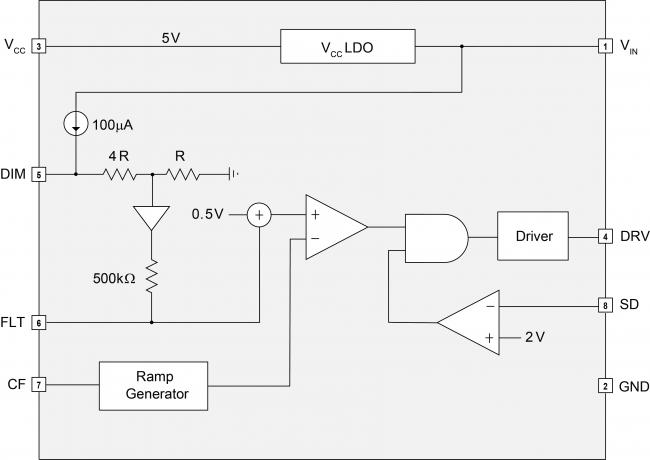

iW337 Functional Block Diagram

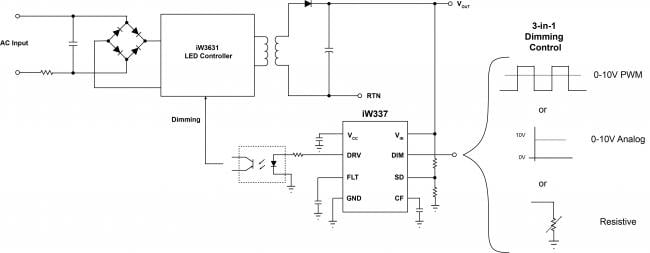

iW337 Typical Applications Diagram
iW337 Functional Block Diagram
iW337 Typical Applications Diagram
  • Operating range:15V to 60V
  • 3-in-1 dimmer interface
    • 0V to 10V analog
    • PWM (10V)
    • Resistor
  • Highly integrated for low BOM cost
    • Integrated current source for driving 0V to 10V dimmers
    • Integrated optocoupler driver for isolated applications
  • 1% to 100% PWM output
    • 1% PWM duty cycle tolerance
    • Selectable frequency range via external capacitor
  • Shutdown pin to minimize standby power

アプリケーション

  • 0V to 10V analog or PWM LED dimming
  • Resistor LED dimming

ドキュメント

= ピックアップ
分類 タイトル 日時
製品概要
iW337 Product Summary
PDF 427 KB
カタログ
Power Products Brochure
PDF 8.73 MB
データシート
iW337 Datasheet
ログインしてダウンロード PDF 648 KB
アプリケーションノート
Application Note 2101 - 0-10V Analog Dimming
ログインしてダウンロード PDF 590 KB
その他資料
Reference Design EBC20052: iW3637-01 and iW337-30, 300V-400VDC Input, 120V/500mA Output, 0-10V Dimmable High Voltage Buck SSL Design
ログインしてダウンロード ZIP 4.11 MB
5 items
