The DA6102 is a highly integrated multi-channel PMIC designed for 2-cell Lithium-ion battery-powered systems. The wide input voltage range allows direct battery connection for each channel to maximize battery life. The PMIC also includes a highly accurate input current sense with circuit breaker control for battery current sensing and overcurrent shutdown.

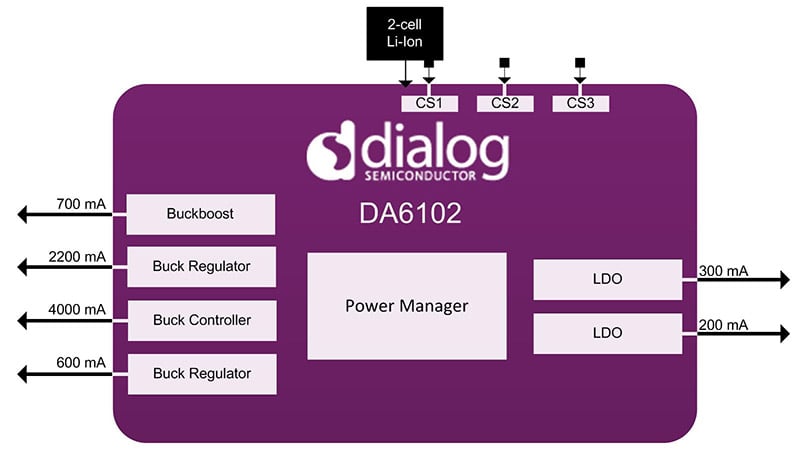

The DA6102 integrates two buck regulators, a buck-boost regulator, a high current buck controller, and two always-on LDOs. This high level of integration combined with high-frequency operation (up to 3MHz) minimizes both PCB size and external component count for the smallest possible solution size. The DA6102 uses extremely low RDSON FETs to enable very high-efficiency buck and buck-boost regulation.
|Document title||Document type 分類||日付 日付|
|PDF 2.34 MB||データシート|
|PDF 1.46 MB||マニュアル－開発ツール|
|PDF 277 KB 英語||製品概要|
