パワーマネジメント

概要

The SLG55550 is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit. The device supports both the latest USB Battery Charging Specification Revision 1.1 including data contact detection and a set resistor bias for Apple compliant devices as well as legacy USB D+/D- short detection using data line pull-up.

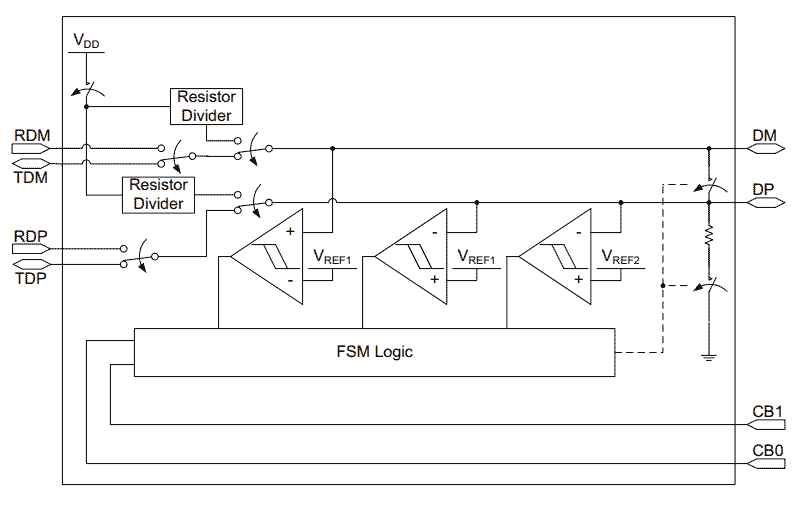

SLG55550 Block Diagram
SLG55550 Block Diagram
  • High Speed USB Switching
  • Low 4.0pF (typ) On Capacitance
  • Low 4.0Ω (typ) On Resistance
  • Low 0.5Ω (typ) On Resistance Flatness
  • 2.8V to 5.5V Supply Range
  • Low 8μA (typ) Supply Current
  • Automatic USB Charger Identification Circuit
  • USB Battery Charging Specificatlon 1.2 compliant
  • Pb-Free / RoHS Compliant
  • Halogen-Free
  • 3 x 3 mm TDFN-10 Package

アプリケーション

  • USB Ports/Hubs
  • Notebook PCs
  • Power bank
  • Car charger
  • Universal Wall Charging Adapter

ドキュメント

タイトル 分類 日付
SLG55550 Datasheet
PDF149 KB
データシート
BCID Brochure
PDF457 KB
カタログ
USB Routing Layout Guidelines for Dialog SLG5554x BCID ICs
PDF261 KB
その他資料

設計・開発

ソフトウェアダウンロード

タイトル 分類 日付
Altium BCID CAD Symbols and Footprints
ZIP24 KB
PCB設計ファイル
Eagle BCID CAD Symbols and Footprints
ZIP4 KB
PCB設計ファイル

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる

製品選択

    Processing table
    型名
    Pkg. Type
    Carrier Type
    ご購入 / サンプル
    SLG55550V
    play_circleActive
    memory
    view_in_ar
    		TDFN-10
