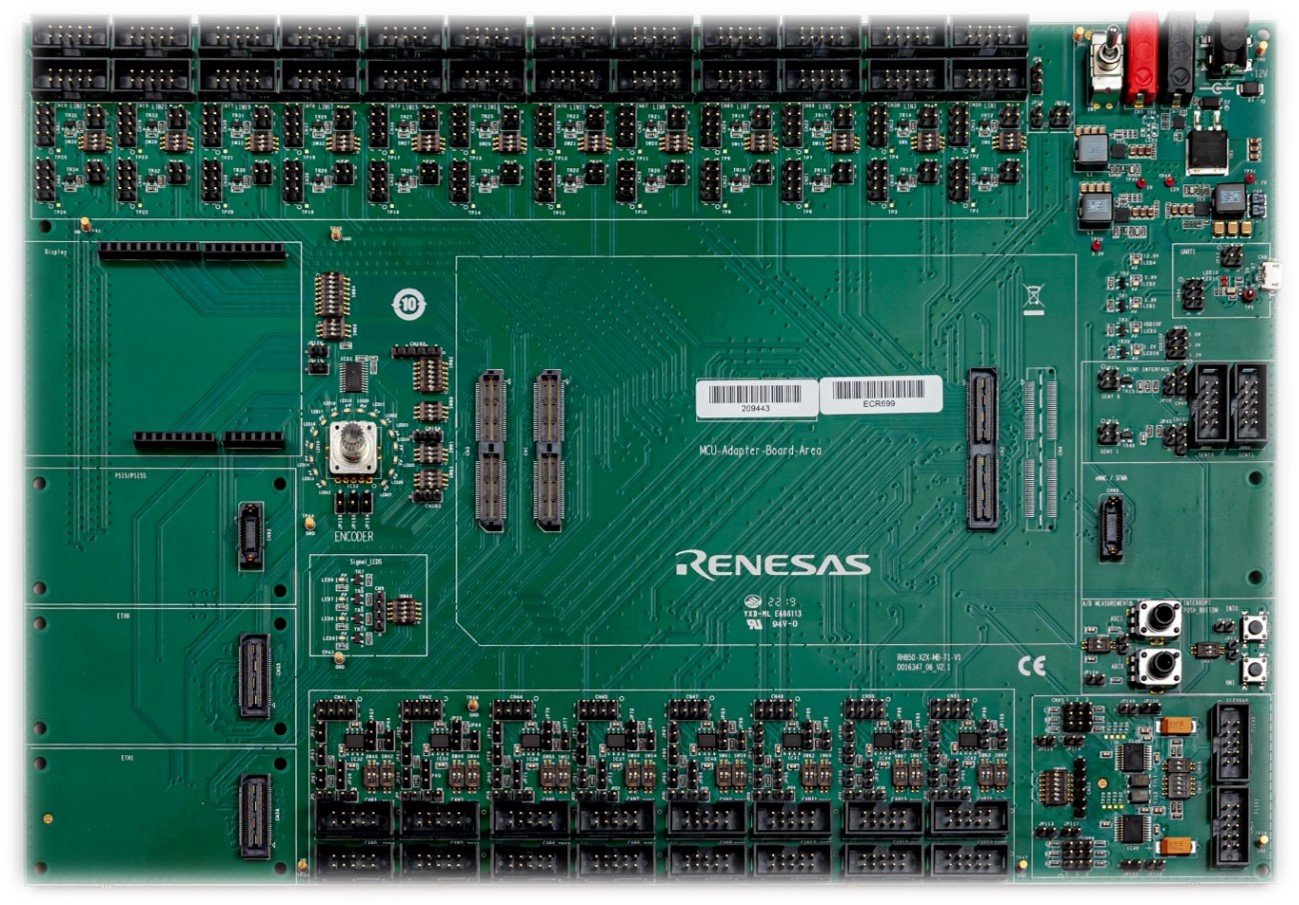

RH850 Generation 2 Mainboard of RH850 Evaluation System
ページセクションへ移動：
概要
説明
The RH850 Generation 2 Mainboard provides communication interfaces to the RH850 Piggyback boards. The modular RH850 Evaluation System consisting of mainboards and piggyback boards is a platform for evaluating features and performance of Renesas 32-bit RH850 microcontrollers.
特長
- Adaptation headers to connect MCU Piggyback boards
- 12V power supply connection
- 2 DC-DC Regulators (configurable for 3.3V, 5.0V)
- DC Power Jack (ID=2.1mm, center positive) as well as 4mm Banana Jacks (1x red, 1x black)
- Communication interfaces
- 16x CAN(-FD) ports, 24x LIN ports, 2x FlexRay ports
- 2x Ethernet ports (with exchangeable PHY Ext. boards)
- 2x UART/RS232 ports
- 2x SENT ports
- 20x Signal LEDs (Active High), 1x Rotary switch
- 2x Push buttons, 2x Analog Input Potentiometers
- TFT touch Display Interface Connector (Arduino Standard)
