16 (+1)-Channel T1/E1/J1 Short Haul Line Interface Unit. This device has an adaptive equalizer integrated, performs clock.data recovery, line decoding/encoding and has one jitter attenuator. Optimized to be used in LAN, WAN, Routers, Wireless Base Stations, Gateways etc.
特長
Integrates 16+1 channels T1/E1/J1 short haul line interface units for 100 | T1, 120 | E1, 110 | J1 twisted pair cable and 75 | E1 coaxial cable applications
Per-channel configurable Line Interface options
Per-channel system and diagnostic functions
Hitless Protection Switching (HPS) without external Relays
Integrated clock synthesizer
Supports Serial microprocessor interface and Parallel Intel / Motorola Non-Multiplexed /Multiplexed microprocessor interface
3.3 V and 1.8 V power supply
Package: 416-pin PBGA (27 mm X 27 mm)
ドキュメント
| Document title | Document type
|
日付 日付 | |
|---|---|---|---|
| PDF 1.18 MB | データシート | ||
| PDF 162 KB | アプリケーションノート | ||
| PDF 118 KB | アプリケーションノート | ||
| PDF 216 KB | アプリケーションノート | ||
| PDF 283 KB | アプリケーションノート | ||
| PDF 437 KB | アプリケーションノート | ||
| PDF 545 KB | EOL通知 | ||
| PDF 105 KB | 製品変更通知 | ||
| PDF 729 KB | 製品変更通知 | ||
9 items
|
|||
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
| PBGA | 416 | Yes | Tray | サンプルを入手, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

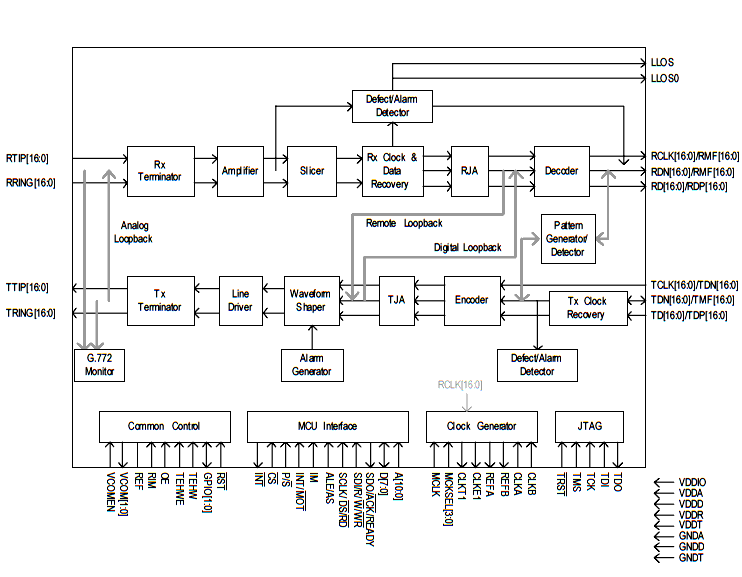

- Chip icon next to the right of the document icon in row: View the block diagram for this product
