概要

The GX76474 is a low-power, high-performance, quad-channel linear driver chip. It is designed for 400G/600G optical integrated transmitter small-form factor (SFF) modules for metro and long-haul applications.

The GX76474 integrated quad lanes of driver with SPI circuitry for DC controls on a single die.  Each channel of driver has 100Ω differential AC-coupled input and 60Ω differential interface with an open collector type output stage, and linear output voltage of 4.0Vppd suitable for Silicon Photonics modulator and multi-level modulations.

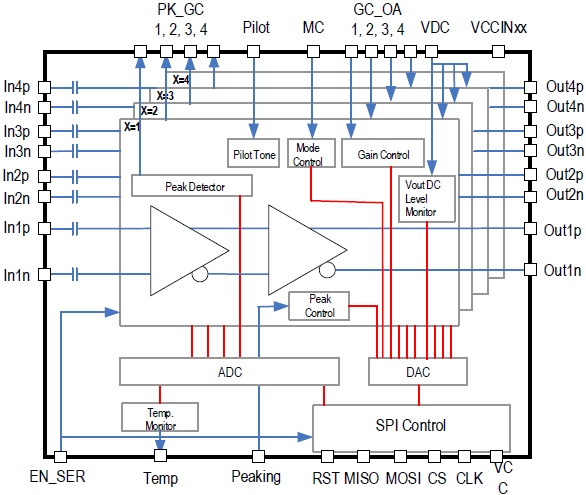

GX76474 - Block Diagram
GX76474 - Block Diagram
  •  Data rate up to 64Gbps per channel for 400G/600G DP-mQAM applications
  • > 40GHz Bandwidth
  • > 10dB dynamic range of gain control
  • 2.4W (typical) at linear 4.0Vppd
  • AC-coupled 100Ω differential input/ open collector configuration at the output
  • Ultra-low inter-channel cross-talk
  • Peaking adjustment functionality
  • Analog control for gain and output voltage setting, and analog monitor for peak detector and gain control monitor
  • OIF compliant SPI digital interface integration
光ソリューション用400ZRモジュール

ドキュメント

タイトル 分類 日付
GX76474 Short-Form Datasheet
PDF130 KB
データシート－簡略版
PCN# : 210015 Change of Waffle Pack Label Display
PDF134 KB
製品変更通知

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる

製品選択

    Processing table
    型名
    EPC
    Pkg. Type
    Temp. Grade
    Carrier Type
    ご購入 / サンプル
    GX76474-DNT
    play_circleActive
    memory
    view_in_ar
    サンプル入手可能
    		 E WFP サンプルを入手,
