Dual, High-Speed MOSFET Driver Evaluation Board
The ISL55110EVAL1Z evaluation board is used to evaluate the ISL55110 dual, high-speed MOSFET driver.
The ISL55110 is intended for applications requiring accurate...
概要
説明

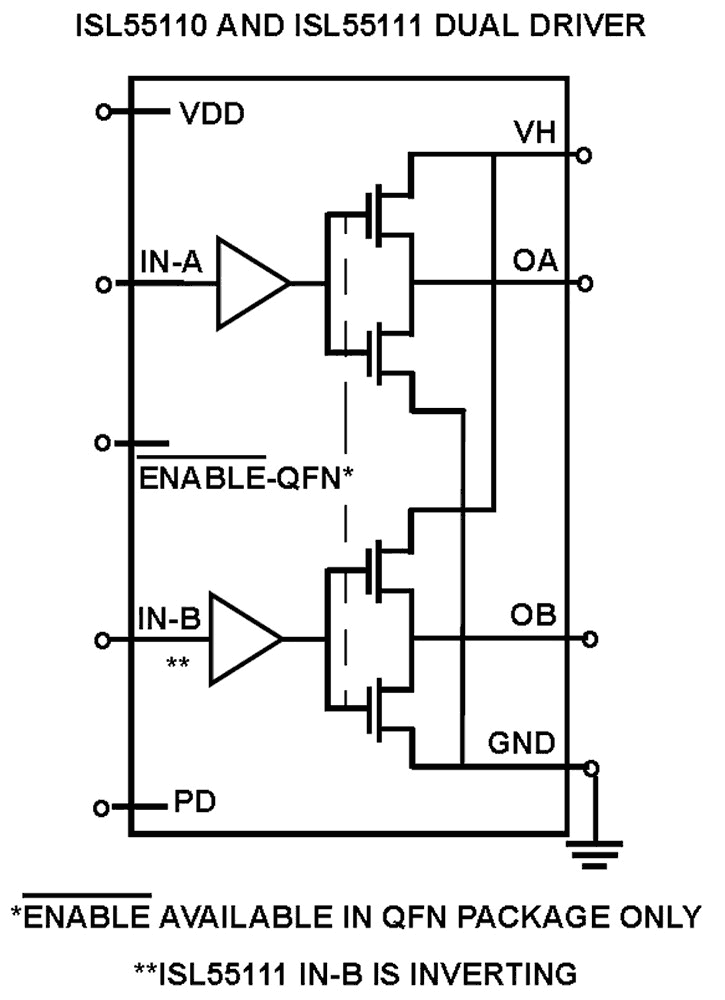

The ISL55110 is a dual high-speed MOSFET driver intended for applications requiring accurate pulse generation and buffering. Target applications include ultrasound, CCD imaging, piezoelectric distance sensing, and clock generation circuits. With a wide output voltage range and low ON-resistance, these devices can drive a variety of resistive and capacitive loads with fast rise and fall times, allowing high-speed operation with low skew, as required in large CCD array imaging applications. The ISL55110 is compatible with 3.3V and 5V logic families and incorporates tightly controlled input thresholds to minimize the effect of input rise time on output pulse width. The device has a pair of in-phase drivers. And it has a power-down mode for low power consumption during equipment standby times, making it ideal for portable products. The ISL55110 is available in 16 Ld exposed pad QFN packaging and an 8 Ld TSSOP and is specified for operation over the full -40 °C to +85 °C temperature range.
特長
- 5V to 12V pulse amplitude
- High current drive 3.5A
- 6ns minimum pulse width
- 1.5ns rise and fall times, 100pF load
- Low skew
- 3.3V and 5V logic compatible
- Small QFN and TSSOP packaging
- Low quiescent current
- Pb-free (RoHS compliant)
製品比較
アプリケーション
アプリケーション
- Ultrasound MOSFET drivers
- CCD array horizontal drivers
- Automotive piezo driver applications
- Clock driver circuits
ドキュメント
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日付 |
| データシート | PDF 914 KB | |
| トレーニング | PDF 258 KB | |
| トレーニング | PDF 325 KB | |
| Price Increase Notice | PDF 208 KB | |
| アプリケーションノート | PDF 564 KB | |
| その他資料 | PDF 519 KB | |
| Product Advisory | PDF 363 KB | |
| 製品変更通知 | PDF 121 KB | |
| 製品変更通知 | PDF 68 KB | |
| 製品変更通知 | PDF 120 KB | |
| アプリケーションノート | PDF 357 KB | |
| マニュアル－開発ツール | PDF 732 KB | |
12 items
|
||
