概要

The ISL28290EVAL1Z evaluation board is a design platforms containing all the circuitry needed to characterize critical performance parameters of the ISL28290 dual op amp, using a variety of user-defined test circuits.

The ISL28290 amplifier is a dual high-speed operational amplifiers featuring low noise, low distortion and rail-to-rail output drive capability. This device is designed to operate with single and dual supplies from +5V (±2.5V) down to +3V (±1.5V).

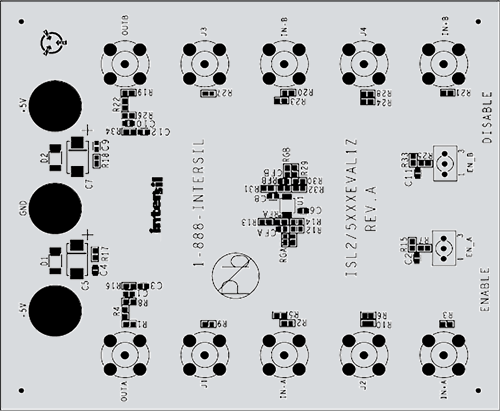

ISL2829xEVAL1Z Dual Op Amp Eval Boards
ISL2829xEVAL1Z Dual Op Amp Eval Boards
  • Operate from a single supply (+3V to +5V)
  • Option to operate from split supplies (±1.5V to ±2.5V)
  • Each op amp in dual package independently configured for differential input
  • Each op amp in dual package configured for a closed loop gain of 10

アプリケーション

  • Low noise signal processing
  • Low noise microphones/pre-amplifiers
  • ADC buffers
  • DAC output amplifiers
  • Digital scales
  • Strain gauges/Sensor amplifiers
  • Radio systems
  • Portable equipment
  • Infrared detectors
タイトル カテゴリ ご購入/サンプル
ISL28290
Dual Supply Ultra-Low Noise, Ultra-Low Distortion, Rail-to-Rail Output, Op Amp
 汎用オペアンプ, 高速オペアンプ（GBW >= 50MHz） ご購入/お見積
ISL28291
Dual Supply Ultra-Low Noise, Low Distortion Rail-to-Rail Output, Op Amp
 汎用オペアンプ, 高速オペアンプ（GBW >= 50MHz） ご購入/お見積

ドキュメント

タイトル 分類 日付
ISL2829xEVAL1Z, ISL5529xEVAL1Z User Guide
PDF393 KB
マニュアル－開発ツール
ISL28290 Datasheet
PDF1.33 MB
データシート
