概要

The IDT P9021 is a dual-mode single-chip wireless power receiver IC that complies with the requirements of both WPC “Qi” 1.0.1 and PMA Type 1 Interoperability specifications. The device functions to receive an AC power signal from a compatible wireless transmitter and convert it into a regulated 5V output voltage to provide direct power or supply the charger input in mobile applications. The P9021 integrates a high-efficiency synchronous full-bridge rectifier, high-efficiency synchronous buck converter, and control circuits used to modulate the load to transmit WPC or PMA-compliant message packets to the transmitter to optimize power delivery.

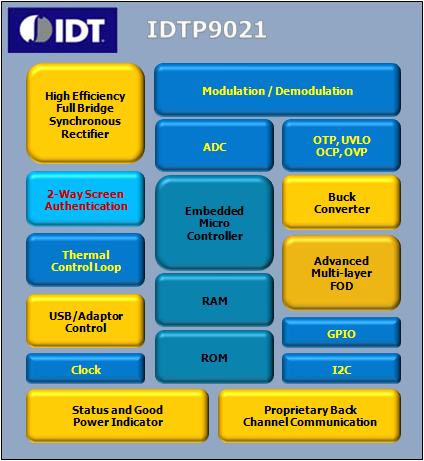

IDTP9021 - Block Diagram
IDTP9021 - Dual-Mode Compliance (Qi and PMA)
IDTP9021 - Block Diagram
IDTP9021 - Dual-Mode Compliance (Qi and PMA)
  • Dual-mode: WPC 1.0.1 and PMA Type 1
  • Compatible with all WPC receiver coils including proprietary and PCB-based coils
  • Integrated synchronous full-bridge rectifier
  • Integrated synchronous buck converter
  • Closed-loop power transfer control between base station and mobile device
  • Optional proprietary back-channel comm.
  • Security and encryption up to 64-bit
  • Optional multi-layer foreign object detection (FOD)
  • Over-temp, voltage, current protection

ドキュメント

タイトル 分類 日付
IDTP9021 Dual-mode WP Receiver Preliminary Data Sheet
PDF589 KB
データシート－簡略版
Wireless Power Transmission Resonance LC Calculations
PDF3.74 MB
アプリケーションノート

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる

製品選択

    Processing table
    型名
    Pkg. Type
    Carrier Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    ご購入 / サンプル
    P9021-0AHGI8
    block_flippedObsolete
    memory
    view_in_ar
    		WLCSP Reel 99 I Yes
