3- to 8-Cell Li-ion Battery Pack Monitor Evaluation Kit
The ISL94203EVAL1Z evaluation kit facilitates testing of the ISL94203 Li-ion battery pack monitor and control ICs. The ISL94203 monitors cell voltage, current and...
3-to-8 Cell Li-ion Battery Pack Monitor
以下のデバイスを代替品として推奨しております。
ISL94202 - スタンドアロン3〜8セルリチウムイオンバッテリパックモニタ
The ISL94203 is not recommended for new designs. The recommended replacement is ISL94202.
The ISL94203 is not recommended for new designs. The recommended replacement is ISL94202.
ページセクションへ移動：
概要
説明

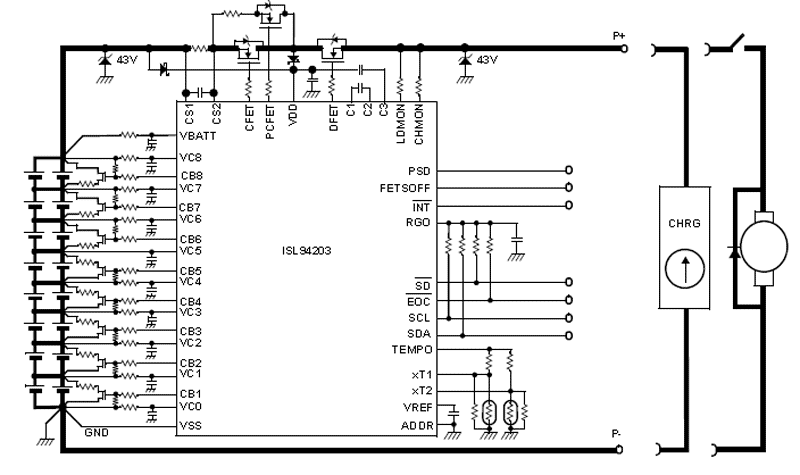

The ISL94203 is a Li-ion battery monitor IC that supports from 3 to 8 series connected cells. It provides full battery monitoring and pack control. The ISL94203 provides automatic shutdown and recovery from out of bounds conditions and automatically controls pack cell balancing. The ISL94203 is highly configurable as a stand-alone unit, but can be used with an external microcontroller, which communicates to the IC through an I2C interface.
特長
- Eight cell voltage monitors support Li-ion CoO2, Li-ion Mn2O4 and Li-ion FePO4 chemistries
- Stand-alone pack control - no microcontroller needed
- Multiple voltage protection options (each programmable to 4.8V; 12-bit digital value) and selectable overcurrent protection levels
- Programmable detection/recovery times for overvoltage, undervoltage, overcurrent and short-circuit conditions
- Configuration/calibration registers maintained in EEPROM
- Open battery connect detection
- Integrated charge/discharge FET drive circuitry with built-in charge pump supports high-side N-channel FETs
- Cell balancing uses external FETs with internal state machine or external microcontroller
- Enters low power states after periods of inactivity. Charge or discharge current detection resumes normal scan rates
製品比較
アプリケーション
アプリケーション
- Power tools
- Battery back-up systems
- E-bikes
