概要
説明

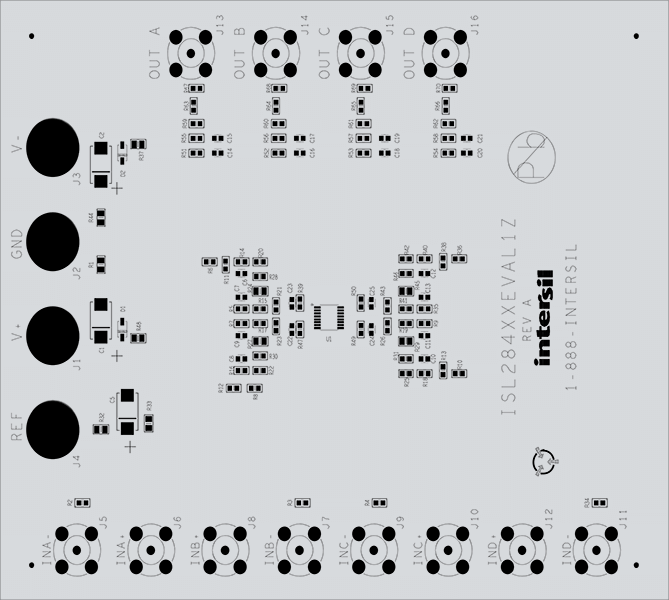

The ISL28488EVAL1Z evaluation board is used to evaluate the ISL28488 quad-channel micropower op amps.
The ISL28488 is a quad-channel, micropower operational amplifier optimized for single-supply operation over the 2.4V to 5.5V range. It can be operated from one lithium cell or two NiCd batteries. For equivalent performance in a single-channel op amp, reference the EL8188.
特長
- Single-supply (+2.4VDC to +5VDC)
- Split supplies (±1.2VDC to ±2/5V)
- Four independent op amps connected for differential input
- Closed-loop gain of 10VREF pin and provisions for a user-selectable
- Voltage divider (filter is included)
アプリケーション
- Battery or solar-powered systems
- 4mA to 25mA current loops
- Handheld consumer products
- Medical devices
- Thermocouple amplifiers
- Photodiode pre-amps
- pH probe amplifiers
