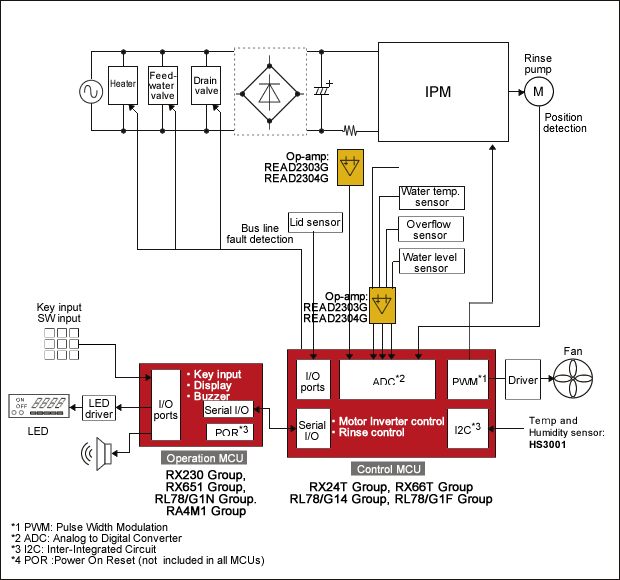

Dishwashers require fine-grained control over water pumps, complex system control over valves, and so on. To meet these requirements, Renesas Electronics supplies the RX24T Group, RX66T Group, RL78/G14 Group and RL78/G1F Group microcontrollers as solutions for system control, and the RX230 Group, RX651 Group, RL78/G1N Group and the RA4M1 Group for operation. These chips are designed to meet demand for advanced functionality, high-performance, reduced power consumption, and lower cost.
Related Products
| Block | Semiconductor Device | Recommended Products | Features |
|---|---|---|---|
| HMI MCU | MCU | RX230 Group RX651 Group |
Enhanced DSP/FPU, Connectivity (USB), HMI (Capacitive Touch), Security, Low power consumption, 5V Large-capacity RAM, Connectivity (Ethernet, USB), HMI (LCD), Security, Motor |
| RL78/G1N Group | 8-bit general-purpose MCU, Large-current output for LED drive | ||
| Arm Cortex-M4 with LCD Controller and Capacitive Touch for HMI | |||
| Control MCU | MCU | RX24T Group RX66T Group |
32-bit MCU including on-chip FPU enable to drive two motors simultaneously RXv3 Core, Motor specialized specifications (max.4 motors) |
| RL78/G14 Group RL78/G1F Group |
Three-phase complementary PWM output, Rich line-up Multifunctional microcontrollers with enhanced functionality suitable for sensor-less BLDC motor control |
||
|
Sensors |
HS3001 | High-Performance Relative Humidity and Temperature Sensor | |
| Sensor Output | Op-amp | READ2303G READ2304G |
Full range input/output, high slew rate Low power consumption, high slew rate |
