Overview
Description

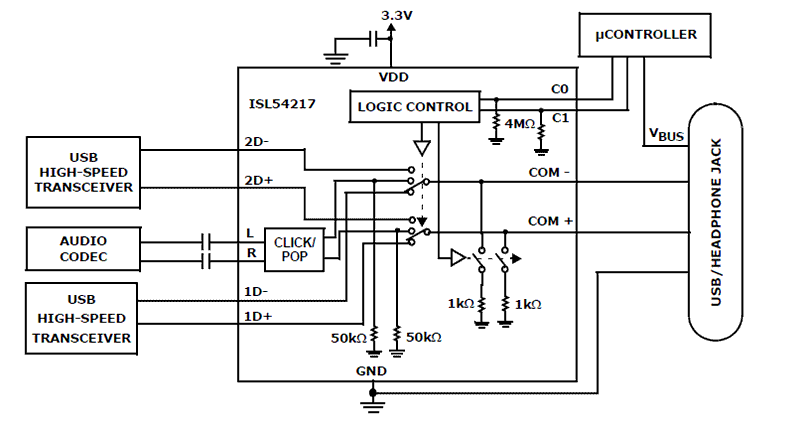

The ISL54217 is a single supply dual SP3T analog switch that operates from a single supply in the range of 2.7V to 4.6V. It was designed to multiplex between audio stereo signals and two different USB 2.0 High-Speed differential data signals. The audio channels allow signal swings below ground, allowing the multiplexing of voice and data signals through a common headphone connector in personal media players and other portable battery-powered devices. The audio switch cells can pass ±1V ground referenced audio signals with very low distortion (<0.03% THD+N when driving 5mW into 32Ω loads). The USB switch cells have very low ON-capacitance (8pF) and high bandwidth to pass USB High-Speed signals (480Mbps) with minimal edge and phase distortion. The ISL54217 is available in a tiny 12 Ld 2.2mm x 1.4mm ultra-thin QFN and a 12 Ld 3mm x 3mm TQFN package. It operates over a temperature range of -40 °C to +85 °C.
Features
- High-speed (480Mbps) and Full-speed (12Mbps) signaling capability per USB 2.0
- Low distortion negative signal capability audio switches
- Clickless/Popless audio switches
- Power OFF protection
- COM pins overvoltage tolerant to 5.5V
- Low distortion headphone audio signals
- THD+N at 5mW into 32Ω load: <0.03%
- Crosstalk (100kHz): -98dB
- OFF-isolation (100kHz): 95.5dB
- Single supply operation (VDD): 2.7V to 4.6V
- -3dB bandwidth USB switches: 700MHz
- Available in tiny 12 Ld µTQFN and TQFN packages
- Compliant with USB 2.0 short circuit requirements without additional external components
- Pb-free (RoHS compliant)
Comparison
Applications
- MP3 and other personal media players
- Cellular/Mobile phones
Documentation
|
|
|
---|---|---|
Type | Title | Date |
Datasheet | PDF 1.92 MB | |
Other | PDF 293 KB | |
End Of Life Notice | PDF 257 KB | |
Product Change Notice | PDF 57 KB | |
4 items
|
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
