Overview

The P9225-R-EVK is a turnkey 5 Watt, wireless power receiver kit supporting both WPC and PMA standards. The kit consists of an easy-to-use reference board and comprehensive support collateral that significantly eases design-in effort and minimizes time-to-market.

An associated layout module enables direct instantiation on to a system board, while an optimized and fully-tested Bill-of-Materials (BOM) takes the guess-work out of component selection. The P9225-R based solution is well-suited for a wide range of applications such as medical devices, and other portable devices still hindered by traditional contact-based charging bases or cables.

Need a wireless power transmitter too? See the P9038-R-EVK.

P9225-R-EVK Box

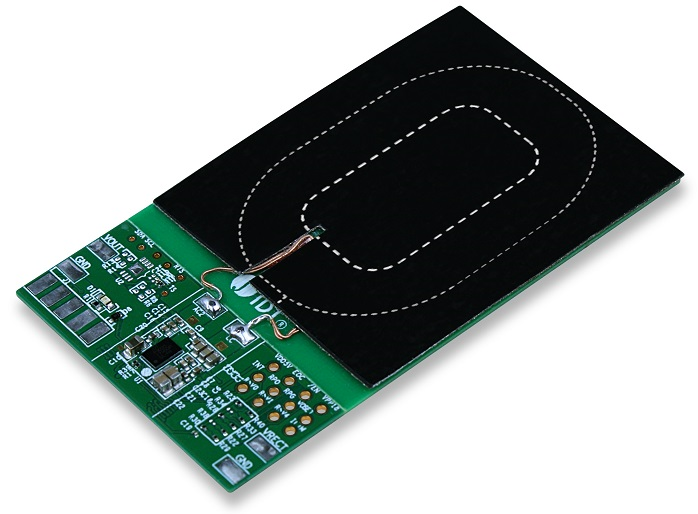

P9225-R - Evaluation Board (perspective)
P9225-R-EVK Box
P9225-R - Evaluation Board (perspective)
  • 70mm² total PCB area
  • Supports up to 5W power transfer
  • WPC-1.2.4 compliant, PMA SR1 compatible
  • Programmable output voltage: 4.5V to 5.5V
  • Patented over-voltage protection clamp eliminating external capacitors
  • Embedded 32-bit ARM® Cortex®-M0 processor
  • Compact form factor for fast prototyping
  • Layout module provided for direct copy and paste to system board
  • Optimized PCB reference layout and fully-tested BOM (check BOM)
  • Supported by extensive library of digital support collateral
Title Category Buy / Sample
P9038
8W, Qi-compliant, Wireless Power Transmitter IC
 Wireless Power Transmitters, Magnetic Induction Buy / Sample
P9225-R
Dual Mode Wireless Power Receiver for 5W Applications
 Wireless Power Receivers, Magnetic Induction Buy / Sample

Documentation

Title
Type 		Date
P9225-R EVK User Manual
PDF 1.09 MB 		Manual - Hardware
P9225-R-EVK Allegro Layout File (v2p1)
ZIP 64 KB 		Engineering
P9225-R-EVK BOM
XLSX 12 KB 		Engineering
Wireless Power Products Overview
PDF 1.14 MB 		Overview
P9225-R-EVK Orcad Schematic (v2p1)
ZIP 243 KB 		Schematic
P9225-R-EVK Schematic
PDF 23 KB 		Schematic
Tuning Qi and AirFuel / PMA Inductive Resonance Circuits for Optimal Efficiency
PDF 627 KB 		White Paper
7 items
