Overview

The ISL88001, ISL88002, ISL88003 supervisors are extremely low power 160nA voltage supervisors that help to monitor the power supply voltages in a wide variety of applications. By providing Power-On Reset and supply voltage supervision in small 3 Ld SC-70 and SOT-23 packages, the ISL88001, ISL88002, ISL88003 devices can help to lower system cost, reduce board space requirements and increase the reliability of systems. The most popular voltage trip points are available for standard power supplies from 1. 8V to 5. 0V (see “Ordering Information” on page 3). These reset threshold voltages are accurate to within ±1. 2% and the reset signal is valid down to 1V. Active high and active low reset outputs are available in push-pull and open drain configurations (see “Functional Block Diagrams” on page 2). The ISL88001, ISL88002, ISL88003 devices are specifically designed for low power consumption and high threshold accuracy, making them especially suitable for electronic devices and portable equipment.

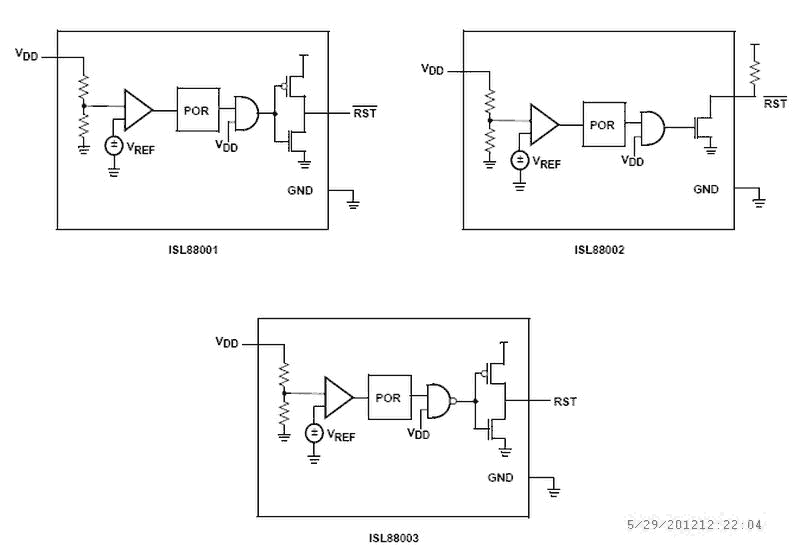

ISL8800x Functional Diagram
ISL8800x Functional Diagram
  • Single Voltage Monitoring Supervisors
  • Fixed-Voltage Options Allow Precise Monitoring of +1.8V, +2.5V, +3.0V, +3.3V and +5.0V Power Supplies
  • Ultra Low 160nA Supply Current
  • ±1.2% Voltage Threshold Accuracy
  • 190ms Power-On Reset Timeout
  • Reset Signal Valid Down to VDD = 1V
  • No External Components Necessary
  • Immune to Power-Supply Transients
  • Available in Small 3 Ld SC-70 and 3 Ld SOT-23 Pb-free Packages
  • Pin Compatible with MAX803, MAX809, MAX810
  • Pb-Free (RoHS Compliant)

Applications

  • Microprocessor/Microcontroller Systems
  • Intelligent Instruments
  • Controllers
  • Computer Systems
  • Portable/Battery-Powered Equipment
  • PDA and Hand-Held PC Devices

Documentation

Type Title Date
Datasheet
ISL88001, ISL88002, ISL88003 Datasheet
PDF 770 KB
Brochure
Industrial Power Management Brochure
PDF 5.51 MB 日本語
End Of Life Notice
PLC21035 - End of Life Notice
PDF 1.17 MB
Product Change Notice
PCN21010 - Datasheet specification change of the listed Renesas Products
PDF 133 KB
Price Increase Notice
PIN19028 - Q3 Cy 19 Price Increase Notice
PDF 208 KB
White Paper
How Green is Your Cloud?
PDF 295 KB
Product Change Notice
PCN11088 - Lead Frame Material Change for Assembly of the Listed Intersil SC-70 Packaged Products - Carsem, Ipoh Malaysia (CAM)
PDF 201 KB
Product Change Notice
PCN11006 - Alternate Material Set for Assembly of the Listed Intersil ISL8800* SOT23 Packaged Products - Carsem, Ipoh Malaysia (CAM)
PDF 181 KB
Application Note
AN1403: Introducing General Purpose Voltage Supervisors to increase System Reliability
PDF 227 KB
Application Note
AN1681: Grounding Techniques
PDF 509 KB
Application Note
AN1684: Nonideality of Ground
PDF 397 KB
