概要

The ZSPM1363 is a configurable true-digital dualphase PWM controller for high-current, non-isolated DC/DC supplies. It operates as a synchronous stepdown converter in a single-rail and dual-phase configuration. The ZSPM1363 integrates a digital control loop, optimized for maximum flexibility and stability, as well as load step and steady-state performance. In addition, a rich set of protection and monitoring functions is provided. On-chip, non-volatile memory (NVM) and an I2C interface facilitate configuration. The PC-based Pink Power Designer™ graphical user interface (GUI) provides a user-friendly and easy-to-use interface to the device for communication and configuration. It can guide the user through the design of the digital compensator and offers intuitive configuration methods for additional features, including protection and sequencing.

ZSPM1363 - Typical Application Diagram
ZSPM1363 - Block Diagram

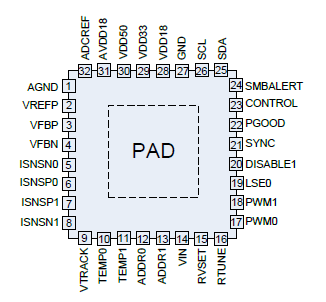

ZSPM1363 - Pinout
ZSPM1363 - Typical Application Diagram
ZSPM1363 - Block Diagram
ZSPM1363 - Pinout
  • Programmable digital control loop
  • Dual-phase, single-rail solution
  • Power modes (phase addition/drop)
  • Optional PMBus™ address selection without external resistors
  • VIN feed-forward
  • Advanced, digital control techniques
  • Improved transient response and noise immunity
  • Discontinuous conduction mode (DCM) and phase dropping at light loads
  • Protection features
  • Fuse-based NVM for improved reliability
  • Re-programmable one-time programmable (OTP) memory feature
  • VOUT sequencing from external source
  • Pin-strapping options: RTUNE and RVSET
  • Current balancing between both phases
  • Tri-state PWM outputs
  • Additional driver support options
  • Constant on-time controller (COT) in DCM

ドキュメント

タイトル 分類 日付
ZSPM1363 Short-form Datasheet
PDF163 KB
データシート－簡略版
ZSPM1363 Datasheet
PDF685 KB
データシート
Renesas CAD Altium Libraries for AID Products Rev 20210820
7Z1.21 MB
ガイド

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる

製品選択

    Processing table
    型名
    Pkg. Type
    Lead Count (#)
    Temp. Range
    Carrier Type
    ご購入 / サンプル
    ZSPM1363BA1R1
    play_circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 VFQFPN 32 -40 to 125°C Reel サンプルを入手,
