パッケージ情報
| Lead Count (#) | 32 |
| Pkg. Type | TQFP |
| Pkg. Code | PRG32 |
| Pitch (mm) | 0.8 |
| Pkg. Dimensions (mm) | 7.0 x 7.0 x 1.4 |
環境及び輸出分類情報
| Pb (Lead) Free | Yes |
| ECCN | NLR |
| HTSUS | 8542390000 |
| Moisture Sensitivity Level (MSL) | 3 |
製品スペック
| Pkg. Type | TQFP |
| Lead Count (#) | 32 |
| Pb (Lead) Free | Yes |
| Carrier Type | Reel |
| Additive Phase Jitter Typ RMS (fs) | 450 |
| Additive Phase Jitter Typ RMS (ps) | 0.45 |
| Core Voltage (V) | 2.5, 3.3 |
| Function | Buffer |
| Input Freq (MHz) | 0 - 3000 |
| Input Type | LVPECL |
| Inputs (#) | 2 |
| Length (mm) | 7.0 |
| MOQ | 2000 |
| Moisture Sensitivity Level (MSL) | 3 |
| Output Banks (#) | 2 |
| Output Freq Range (MHz) | 0 - 3000 |
| Output Skew (ps) | 30 |
| Output Type | LVPECL |
| Output Voltage (V) | 2.5, 3.3 |
| Outputs (#) | 10 |
| Package Area (mm²) | 49.0 |
| Pb Free Category | e3 Sn |
| Pitch (mm) | 0.8 |
| Pkg. Dimensions (mm) | 7.0 x 7.0 x 1.4 |
| Qty. per Carrier (#) | 0 |
| Qty. per Reel (#) | 2000 |
| Reel Size (in) | 13 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Tape & Reel | Yes |
| Temp. Range | 0 to 70°C |
| Thickness (mm) | 1.4 |
| Width (mm) | 7.0 |

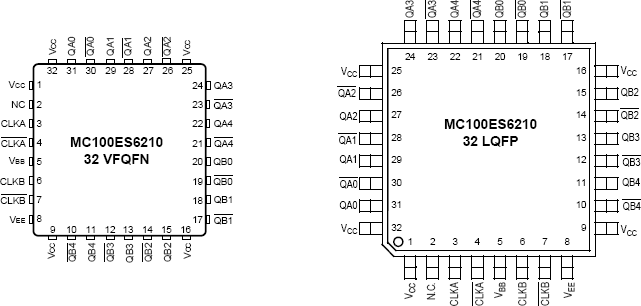

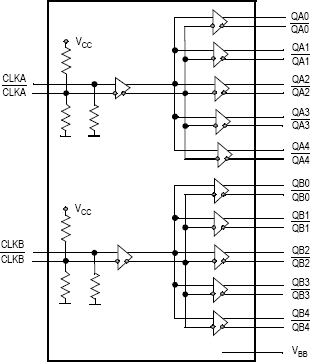

説明
