Renesas' precision operational amplifier (op amp) portfolio delivers best-in-class performance to achieve low offset voltages, low noise and overall high performance at low power. Our PR40 op amps are ideal for precision instrumentation, industrial and high-end medical applications where higher accuracy makes a difference.

Analog Products

Product Selection Table

    Processing table
    Part Number
    Channels (#)
    Bandwidth (MHz)
    IBIAS (nA)
    IS (per amp) (mA)
    Offset Voltage (Max) (mV)
    Slew Rate (V/µs)
    Rail-to-Rail Input
    Rail-to-Rail Output
    Single Supply Voltage Range (V)
    Gain Min
    IOUT (A)
    Noise VN (nV/√Hz)
    AVOL (dB)
    CMRR (dB)
    PSRR (db)
    Enable
    Topology [Rail 1]
    Gain Error/Measurement Error (Max)
    VOUT (V)
    VS (Min) (V)
    VS (Max) (V)
    Thermal Shutdown
    Lead Count (#)
    Pkg. Type
    Simulation Model Available
    ISL28108
    40V Precision Single Supply Rail-Rail Output Low Power Operational Amplifiers    		 1 1.2 -13 0.185 0.15 0.45 No Yes 1 0.019 15.8 126 123 128 No VFA 39.93 3 40 No 8 SOICN
    ISL28110
    Precision Low Noise JFET Operational Amplifiers    		 1 12.5 0.0003 2.55 0.3 23 No No 9 - 40 1 0.05 6 108 100 115 No VFA 39.2 9 40 No 8 SOICN iSim
    ISL28118
    40V Precision Single Supply Rail-to-Rail Output Low-power Operational Amplifiers    		 1 4 -230 0.85 0.15 1.2 No Yes 1 0.016 5.6 136 118 124 No VFA 3 40 No 8 MSOP, SOICN
    ISL28118M
    40V Extended Temperature Range, Precision Single-Supply, Rail-to-Rail Output, Operational Amplifier    		 1 4 -230 0.85 0.15 1.2 No Yes 3 - 40 1 0.016 5.6 136 118 124 No VFA 3 40 No 8 MSOP iSim
    ISL28130
    Single Micropower, Low Drift, RRIO Operational Amplifier    		 1 0.4 0.25 0.02 0.04 0.2 Yes Yes 1.8 - 5.5 1 0.015 65 150 125 138 No 4.9 1.8 5.5 No 5 SC70, SOT23

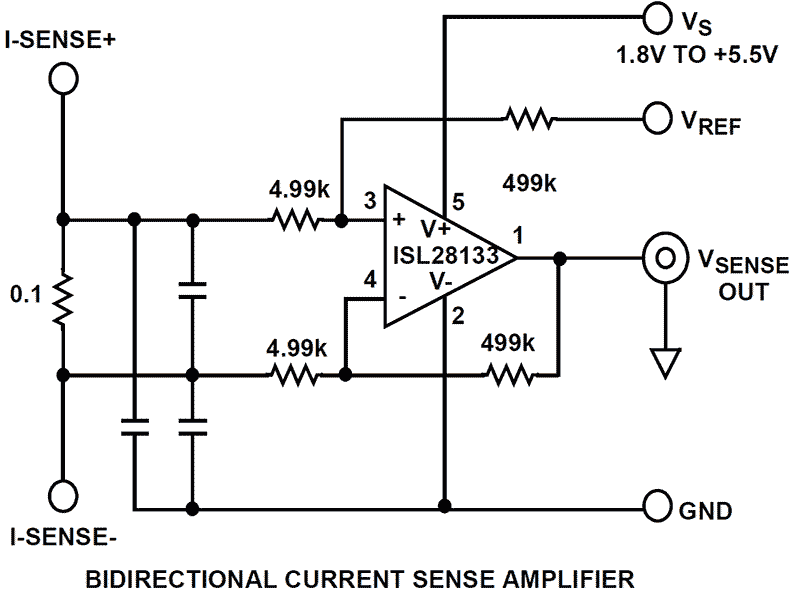

    ISL28133
    Single Micropower, Chopper Stabilized, RRIO Operational Amplifier    		 1 0.4 0.03 0.018 0.008 0.2 Yes Yes 1.8 - 5.5 1 0.017 65 174 125 138 No VFA 4.9 1.8 5.5 No 5 SC70, SOT23 iSim
    ISL28134
    5V Ultra Low Noise, Zero Drift Rail-to-Rail Precision Op Amp    		 1 3.5 0.12 0.675 0.0025 1.5 Yes Yes 1 0.065 8 125 135 135 No VFA 2.25 6 No 5, 8 SOICN, SOT23 iSim
    ISL28177
    40V General Purpose Precision Operational Amplifier    		 1 0.6 0.2 1.18 0.15 0.2 No No 6 - 40 1 0.03 9.5 140 140 130 No 6 40 No 8 SOICN iSim
    ISL28207
    Precision Dual Low Noise Operational Amplifier    		 2 1 0.015 0.21 0.075 0.32 No No 4.5 - 40 1 0.04 13 145 145 No 38.5 4.5 40 No 8 SOICN
    ISL28208
    40V Precision Dual Supply Rail-Rail Output Low Power Operational Amplifiers    		 2 1.2 -13 0.165 0.23 0.45 No Yes 1 0.019 15.8 126 123 128 No 39.93 3 40 No 8 MSOP, SOICN
    ISL28210
    Precision Low Noise JFET Operational Amplifiers    		 2 12.5 0.002 2.55 0.3 23 No No 9 - 40 1 0.05 6 108 100 115 No 39.2 9 40 No 8 SOICN
    ISL28217
    40V Precision Low Power Operational Amplifiers    		 2 1.5 1 0.44 0.05 0.5 No No 1 0.043 8 143 145 145 No 18.5 4.5 40 No 8 MSOP, SOICN
    ISL28218
    40V Precision Single Supply Rail-to-Rail Output Low Power Operational Amplifiers    		 2 4 -230 0.85 0.23 1.2 No Yes 1 0.016 5.6 136 118 124 No VFA 3 40 No 8 MSOP, SOICN
    ISL28227
    Precision Dual Low Noise Operational Amplifiers    		 2 10 10 2.8 0.075 3.6 No No 4.5 - 40 1 0.045 2.5 123.52 120 117 No 38.5 4.5 40 No 8 MSOP, SOICN
    ISL28230
    Dual Micropower, Low Drift, RRIO Operational Amplifier    		 2 0.4 0.25 0.02 0.04 0.2 Yes Yes 1.8 - 5.5 1 0.015 65 150 125 138 No 4.9 1.8 5.5 No 8 DFN, MSOP, SOICN
    ISL28233
    Dual Micropower, Chopper Stabilized, RRIO Operational Amplifier    		 2 0.4 0.18 0.018 0.006 0.2 Yes Yes 1.8 - 6 1 0.017 65 174 125 138 No 4.9 1.8 6 No 8 DFN, MSOP, SOICN
    ISL28430
    Quad Micropower, Low Drift, RRIO Operational Amplifier    		 4 0.4 0.25 0.02 0.04 0.2 Yes Yes 1.8 - 5.5 1 0.015 65 150 125 138 No 4.9 1.8 5.5 No 14 SOICN, TSSOP
    ISL28433
    Quad Micropower, Chopper Stabilized, RRIO Operational Amplifier    		 4 0.4 0.18 0.018 0.006 0.2 Yes Yes 1.8 - 6 1 0.017 65 174 125 138 No 4.9 1.8 6 No 14 SOICN, TSSOP
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    Documentation

    Title Type Date
    R13AN0016: Reducing Offset in Wideband Amplifiers
    PDF285 KB
    Application Note
    R13AN0015: FAQs: Low-Voltage Operational Amplifiers
    PDF381 KB
    Application Note
    R13AN0014: How to Determine the Op-Amp Open-Loop Output Impedance
    PDF204 KB
    Application Note
    Analog ICs Brochure
    PDF4.91 MB日本語
    Brochure
    CMOS and Bi-Polar Operational Amplifiers
    PDF245 KB
    Brochure
    Advanced Complementary Bipolar Processes on Bonded-SOI Substrates (PR40)
    PDF159 KB
    White Paper
