SoC Designed for Cost-Efficient Smart Camera Applications with ASIL and Deep Learning Capabilities
Jump to Page Section:
Overview
Description
The R-Car V3M is an SoC that is primarily for front camera applications, but also surrounds view systems, driver monitoring, or even lidars; and, it enables NCAP (New Car Assessment Program) features. NCAP (New Car Assessment Program) is a government car safety program tasked with evaluating new automobile designs for performance against various safety threats.
A challenge for front cameras is how to provide high performance for computer vision while supporting low power consumption and a high level of functional safety. Since front cameras are mounted next to the windshield, the rise in temperature due to not only the heat generated by the components themselves but also direct sunlight must be taken into consideration. Thus, the requirements for low power consumption are especially stringent. The R-Car V3M solves this challenge and improves the power efficiency of camera system development.
R-Car V3M is certified ASIL B according to ISO26262, which drastically reduces the effort for ASIL ECU development.
R-Car V3M uses the R-Car SDK (Software Development Kit), an easy to start & easy to use development framework for the R-Car V Series SOCs from the successful Renesas Autonomy Platform.
Features
- Low power consumption and highly-efficient image recognition engine
- High-speed processing of algorithms like optical flow, object detection and classification, and convolutional neural networks
- Dual Arm® Cortex®-A53 for application programming and dual Cortex-R7 lockstep cores to run AUTOSAR
- Integrated ISP enables high level of integration for reduced cost
- R-Car V3M is certified ASIL B according to ISO26262
- Open solution for intelligent camera supported by Renesas and its ecosystem of partners
- R-Car V3M & its SW suite are in mass production
Applications
| ADAS Front Camera Solution | |
| Intelligent Camera Solution with R-Car V3M | |
|
Infotainment and Automated Driving Systems with Fewer Components |
Applications
- Front Smart Camera for NCAP
- Surround View with 3D Visualization
- Driver Monitoring System
- Lidar System
- Intelligent Survey Camera
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| ZIP 33.79 MB | Manual - Hardware | ||
| PDF 763 KB | Application Note | ||
| PDF 1.17 MB | Application Note | ||
| PDF 871 KB | Application Note | ||
| PDF 1.33 MB | Application Note | ||
| PDF 2.07 MB | Application Note | ||
| PDF 1.19 MB | Application Note | ||
R-Car Series, 3rd Generation Functions, Usage, and Restrictions of the Video Capturing Based on CSI2
PDF
685 KB
|
Application Note | ||
| PDF 299 KB | Application Note | ||
| PDF 871 KB | Application Note | ||
| PDF 966 KB | Application Note | ||
| PDF 2.12 MB | Application Note | ||
| PDF 387 KB | Application Note | ||
| PDF 1.07 MB | Datasheet | ||
| ZIP 2.57 MB | Guide | ||
| ZIP 11.16 MB | Guide | ||
| PDF 519 KB | Guide | ||
| ZIP 355 KB | Guide | ||
| PDF 635 KB | Manual - Hardware | ||
|
19 items
|
|||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Automotive SoC Consulting Service R-Car Online Consultation is a service where you can receive various consultations regarding R-Car V3H and R-Car V3M. We propose various solutions according to the customer’s situation, such as consultation for customers who are considering R-Car for the first time, learning of image recognition and deep learning using R-Car, and construction of evaluation environment. With this development consulting service for automotive SoC, we will shorten the introduction time of customers and solve problems at an early stage.
|
Software Package | Hitachi Industry & Control Solutions, Ltd. |
| e² studio for R-Car Integrated Software Development Environment. Innovative and Open Development Environment in order to ease SW Development for Computer Vision and Deep Learning Algorithms.
|
IDE and Coding Tool | Renesas |
| INTEGRITY® RTOS The INTEGRITY® RTOS is built around a partitioning architecture to provide embedded systems with total reliability, absolute security, and maximum real-time performance.
|
Software Package | Green Hills Software LLC |
| QNX's ASIL Real Time Operating System Blackberry provides ASIL compliant RTOS and BSP stack optimized for Renesas R-Car V3H & R-Car V3M.
|
Software Package | BlackBerry Limited |
| R-Car Hardware using OpenCL and SYCL Codeplay's Solution for Renesas R-Car developers. ComputeSuite for R-Car™ enables developers to accelerate applications on R-Car hardware using OpenCL and SYCL.
|
Software Package | Codeplay Software |
| Driver Monitoring Solution on R-Car - Vision based ADAS algorithms development on R-Car V3 M/H Driver Monitoring Solution on R-Car. In-cabin camera-based driver monitoring Works with RGB, RGB+IR and IR only sensors CNN and non-CNN based models available to optimize processor load. Suite of Vision based ADAS algorithms development on R-Car V3 M/H, comprising of vulnerable road-user detection, vehicle detection, traffic sign recognition, and traffic light recognition along with complete R&D services for developing ADAS solutions.
|
Software Package | PathPartner Technology Pvt Ltd |
| RT-RK - Expertise on Renesas' Computer Vision and CNN Consulting and services on computer vision and machine learning to optimize the performance of Tier 1 and OEM algorithm on Renesas products
|
Software Package | RT-RK |
| SVNet, Deep Learning Embedded Software by STRADVISION SVNet is a deep learning and camera-based embedded perception software for ADAS & Autonomous Vehicles use cases. There are millions of vehicles powered by SVNet from level 2 ADAS to level 4 Autonomous Vehicles in the production pipeline in Germany and China.
|
Software Package | StradVision, Inc. |
| 3D Surround View With and Without GPU GPU version (R-Car H3 / M3) • 4x 2MP @ 30fps input • 4k @ 60fps output • Cogent color harmonization • Dynamic 3D bowl, dynamic blend zones • Transparent car (Historical view) • Detection features IMR version (R-Car V3H / V3M) • 4x 2MP 30fps input
|
Software Package | Cogent Embedded Inc. |
| ISP Solutions for R-Car V3H & R-Car V3M R-Car V3x ISP solutions, ISP Pipeline • Raw data correction • Lens correction • Noise reduction • Demosaic • Exposure control • White balance • Color correction • Color space conversion: RGB or YUV output PC Tuning Tools • Real-time Tuning • Off-line Tuning
|
Software Package | Cogent Embedded Inc. |
| Atlas Camera Optimization Suite for R-Car by Algolux The Atlas Camera Optimization Suite is the industry’s first set of machine learning tools and workflows that automatically optimizes camera architectures for optimal image quality or for computer vision. Through a secure cloud-enabled interface, Atlas significantly improves computer vision results in days vs. traditional approaches that deliver suboptimal results even after many months of manual ISP tuning.
|
Software Package | Algolux |
| Autobrains AI Solution Autobrains provides video perception SW. Revolutionary, self-learning AI leveraging R-Car V Series assets.
|
Software Package | AutoBrains Technologies Ltd. |
| Safety Support Program Consultancy for R-Car Automotive Applications AVL Software and Functions GmbH provides System FuSa Consultancy for Renesas R-Car SOCs
|
Software Package | AVL Software and Functions GmbH |
13 items
|
||
Sample Code
Boards & Kits
Boards & Kits
R-Car V3M Starter Kit
Software development for advanced driver assistance systems (ADAS) and automated driving (AD) applications has been increasing in scale and complexity in recent years,...
Featured Documents:
eCUBE Development Platform by Lacroix
eCUBE allows ADAS developers to save precious time and effort when they prototype and evaluate their innovative use cases on a new platform. The development platform...
Featured Documents:
R-Car Software Development Kit
The R-Car SDK (Software Development Kit) is an easy to start & easy to use development framework for the R-Car V Series SOCs from the successful Renesas Autonomy...
Featured Documents:
eCUBE DVP Development Platform (Camera Board for R-Car V3H Starter Kit) by Lacroix
Camera board for R-Car V3H Starter Kit with the tuned ISP pipeline of IMX390 & AR0220
eCUBE DVP is a camera board for R-Car V3H Starter Kit. It contributes to R-Car...
Featured Documents:
Support
Resources
| Automotive Software & Tools | Page |
| R-Car Consortium | Page |
| Where to buy R-Car/Boards/V3HSK on elinux.org | External Link |
| R-Car H3/M3/H2/M2/E2 Software Library and Technical Documents | Page |
| R-Car Market Place | External Link |
| R-Car Solution Matching System | External Link |
| R-Car Solution Request Site | External Link |
play_circle_filledVideos & Training
About Macronix (Macronix International Co., Ltd.)
Macronix is a leading Non-Volatile Memory solution provider.
Video List
News & Blog Posts
Specification

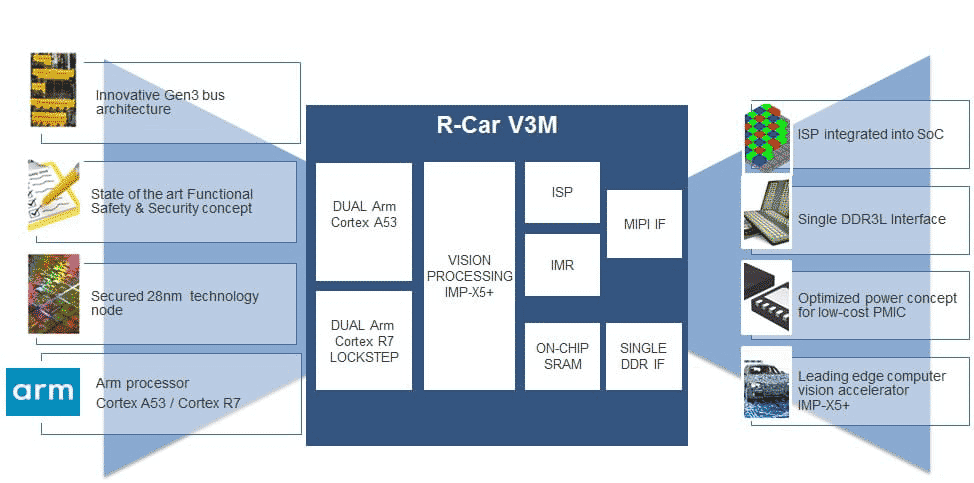

- Two 800MHz Arm® Cortex®-A53 MPCore™ cores
- Dual lockstep 800MHz Arm® Cortex®-R7 core
- Memory controller for DDR3L-1600 with 32 bits × 1 channel
- QSPI Flash memory support
- eMMC 4.5 support
- Image recognition engine (IMP-X5-V3M)
- Image signal processor (ISP)
- Image renders for camera image distortion correction application (IMR)
- Video signal processor (VSPD)
- Video encoding processor for inter-device video transfer (iVCP1E)
- Video output (4 lanes × 1 channel LVDS, 1 channel digital)
- Video input (4 lanes × 1 channel MIPI-CSI2, 2 channels digital)
- 2 channels FlexRay interface
- 8 channels 12-bit analog to digital converter
- CAN/CAN FD interface
- Ethernet AVB
- 4x UART, 4x SPI, 5x I2C interfaces
- FCBGA 19 x 19mm2 0.8mm package
