40V, Low Quiescent Current, 150mA Linear Regulator for Automotive Applications
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description
The ISL78301 is a high voltage, low quiescent current linear regulator ideally suited for “always-on” and “keep alive” automotive applications. The ISL78301 operates from an input voltage of +6V to +40V under normal operating conditions and operates down to +3V under a cold crank. It consumes only 18µA of quiescent current at no load on the adjustable version. The ISL78301 is available in a fixed 3. 3V, 5V and adjustable output voltage (2. 5V to 12V) options. It features an EN pin that can be used to put the device into a low-quiescent current shutdown mode where it draws only 2µA of supply current. The device features over-temperature shutdown and current limit protection. The ISL78301 is AEC-Q100 qualified. It is rated over the -40°C to +125°C automotive temperature range and is available in a 14 Ld HTSSOP with an exposed pad package.
Features
- Optimized for "always-on" automotive applications
- 18µA typical quiescent current
- Guaranteed 150mA output current
- Operates through cold crank down to 3V
- 40V tolerant logic level (TTL/CMOS) enable input
- 2µA of typical shutdown current
- Low dropout voltage of 295mV at 150mA

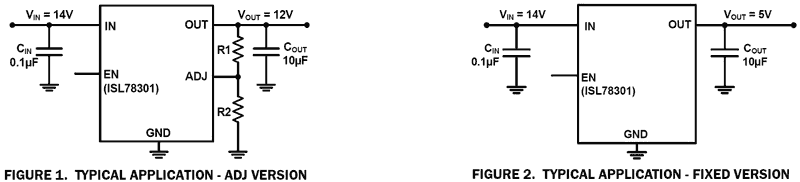

- Fixed +3.3V, +5.0V and adjustable output voltage options
- Stable operation with 10µF output capacitor
- Thermal shutdown and current limit protection
- -40°C to +125°C operating temperature range
- Thermally enhanced 14 Ld exposed pad HTSSOP package
- AEC-Q100 Qualified
- 5kV ESD HBM Rated
- Pb-Free (RoHS Compliant)
Applications
Applications
- Automotive
- Industrial
- Telecommunications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Pkg. Type |
Carrier Type |
MOQ |
Buy / Sample |
|---|---|---|---|---|
ISL78301FVEAZ Active Samples Available |
TSSOP-EP | Tube | 960 | Get Samples, |
ISL78301FVEAZ-T Active Samples Available |
TSSOP-EP | Reel | 2500 | Get Samples, |
ISL78301FVEAZ-T7A Active Samples Available |
TSSOP-EP | Reel | 250 | Get Samples, |
ISL78301FVEBZ Active Samples Available |
TSSOP-EP | Tube | 960 | Get Samples, |
ISL78301FVEBZ-T Active Samples Available |
TSSOP-EP | Reel | 2500 | Get Samples, |
ISL78301FVEBZ-T7A Active Samples Available |
TSSOP-EP | Reel | 250 | Get Samples, |
ISL78301FVECZ Active Samples Available |
TSSOP-EP | Tube | 960 | Get Samples, |
ISL78301FVECZ-T Active Samples Available |
TSSOP-EP | Reel | 2500 | Get Samples, |
ISL78301FVECZ-T7A Active Samples Available |
TSSOP-EP | Reel | 250 | Get Samples, |
