USB Power Delivery 3.0 Interface Controller with Integrated Current Sense
Jump to Page Section:
Overview

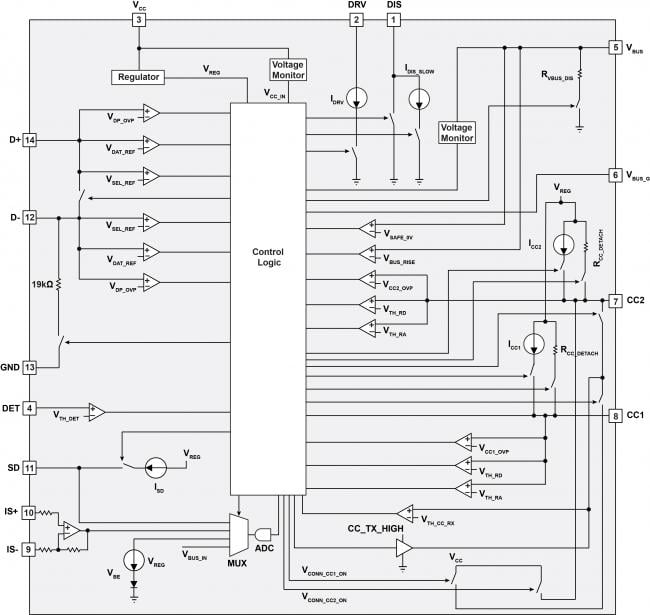

Description
The iW657P USB power delivery (USB PD) 3.0 interface controller resides on the secondary side of the AC/DC power supply and manages the communication between the power adapter and mobile device.
The iW657P works with Renesas' (iW1791, iW1797, iW1799) RapidCharge™ primary-side controller and supports fast charging protocols, including USB PD 3.0, Qualcomm Quick Charge 4+ and direct charging. It transmits all necessary information via an optocoupler to the primary side, including voltage requests, output current limits, output voltage undershoot, output over-voltage, and fault and reset signals. It also offers an optional secondary-side current sensing circuit to provide additional over-load fault protection.
The iW657P also works with Renesas' iW676 synchronous rectifier, which eliminates the need for a parallel Schottky diode for higher efficiency and lower BOM cost.
Qualcomm® Quick Charge™ is a product of Qualcomm Technologies, Inc.
Features
- Supports Multiple RapidCharge Protocols:
- USB PD 3.0 PPS (Programmable Power Supply)
- Qualcomm® Quick Charge™ 4+
- Direct Charge
- Other RapidCharge Protocols
- USB-IF PD 3.0 certified (USB PD 3.0 + PPS)
- Compatible with USB Type-C™ Rev. 1.2
- Supports wide output voltage range from 3.3 to 21V
- NMOS VBUS Switch Lowers System Cost
- VCONN Support for Smart Cables
- Integrated Current Sense
- Single Optocoupler for All Rapid Charge Information
- Low No-Load Power Consumption <20mW
- High Efficiency up to 90%
- Double-Layer Cable Protection:
- Automatic AC Un-Plug Detection
- Protects Phone Battery from Damage Due to High Voltage Exposure if Charger is Unplugged then Re-Plugged into Mains with Charging Cable Still Connected
Applications
Applications
- USB PD 3.0 AC/DC Power Adapters for Smartphones, Tablets, Laptops and Other Mobile Devices
- USB PD 3.0 Power Supplies for Set Top Boxes, Displays, Speakers
- USB PD 3.0 in-the-wall receptacles
- Lamps and lighting fixtures with USB PD 3.0 ports
Documentation
|
|
Date | |
|---|---|---|
| PDF 973 KB | Datasheet | |
| PDF 629 KB | Product Brief | |
Reference Design EBC10222: iW1799-02 + iW657P-27-93B + iW676-00 27W USB PD PPS Constant Power Design
ZIP
3.71 MB
|
Other | |
| ZIP 3.93 MB | Other | |
| ZIP 5.61 MB | Other | |
| ZIP 3.68 MB | Other | |
| ZIP 3.58 MB | Other | |
| ZIP 3.47 MB | Other | |
| ZIP 3.44 MB | Other | |
| ZIP 5.33 MB | Other | |
| ZIP 3.46 MB | Other | |
| ZIP 3.40 MB | Other | |
12 items
|
||
