Overview

The ISL81802EVAL1Z dual-phase evaluation board demonstrates the performance of the ISL81802, an 80V dual synchronous buck controller. The board is configured for 18V to 80V input voltage range, with a dual-phase 12V output capable of 20A. This evaluation board has multiple test points for easy probing. The QFN version of ISL81802 is used on this board.

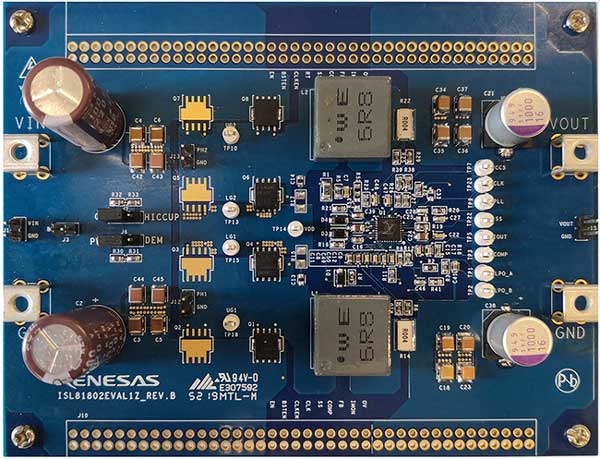

ISL81802EVAL1Z Evaluation Board
ISL81802EVAL1Z Evaluation Board
  • Wide input range: 18V to 80V
  • High light-load efficiency in pulse skipping DEM operation
  • Programmable soft-start
  • Optional DEM/PWM operation
  • Optional CC/HICCUP OCP protection
  • Supports pre-bias output with soft-start
  • PGOOD indicator
  • OVP, OTP and UVP protection
  • Back biased from output to improve efficiency

Applications

  • Telecommunication
  • Server and data center
  • Automotive electronics
  • Industrial equipment
  • Power system
