Power Factor Boost Controller for Solid State Lighting Solutions up to 250W
Jump to Page Section:
Overview
Description

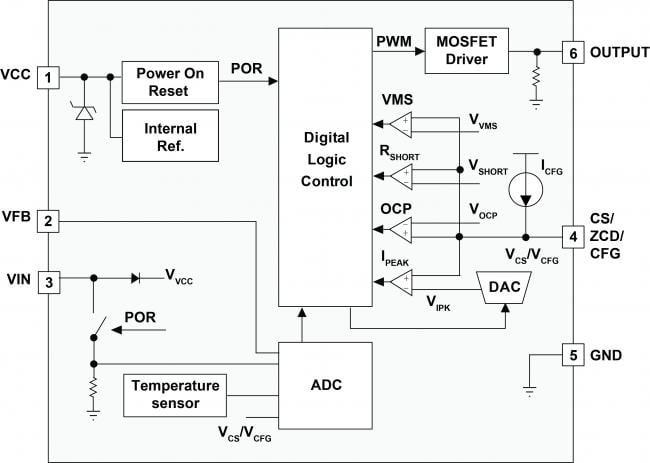

High PF and Low THD
The iW2206 boost PFC controller uses Dialog's PF-BoostTM to provide high power factor (>0.9) and low THD (<10%) at full load across the input voltage range, and it can enable solutions that meet the IEC61000-3-2 requirements for harmonic currents. The device consumes less than 150mW no-load standby power at 230VAC for designs up to 100W of output power, making it ideal for solid state lighting where the front-end converter is always on.
The iW2206 integrates a full range of protection features including output over-voltage, over-power, input over-voltage and under-voltage, over-current and sense resistor short circuit protection, open loop and over temperature protection. The device comes in a tiny SOT23-6 package, enabling a smaller total solution size.
Features
PFC Boost Controller in SOT23-6
Can Meet IEC61000-3-2 Harmonic Current Requirements
PF > 0.9 and THD < 10% @ Full load Across Input Voltage
250W Maximum Output Power
Supports Wide AC Input Voltage – 90VAC to 305VAC with Tight AC Load and Line Regulation (±3%)
Fast PFC Ready Time < 0.2s
Standby Power - < 150mW at 100W and Input Voltage of 230VAC
Shut Down Function
- Pull Down VFB Pin for Lower Standby Power
Fully Protected
- Output Over-Voltage, Over-Power, Over-Current, Sense-Resistor Short Protections
- Input Voltage Under-Voltage and Over-Voltage Protection
- Built-In Over-Temperature Protection
- Open Loop Protection
Applications
Applications
- High-Power USB Type-C™ Adapters and Hubs
- Commercial Lighting: External Fixture Drivers
Documentation
| Document title | Document type Type | Date Date | |
|---|---|---|---|
| PDF 473 KB 简体中文 | Product Brief | ||
| PDF 1.66 MB 简体中文 | Datasheet | ||
| ZIP 4.84 MB | Other | ||
| ZIP 13.71 MB | Other | ||
| ZIP 8.00 MB | Other | ||
5 items
|
|||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| SOT23-6L | Tape & Reel | Get Samples, | |
| SOT23-6L | Tape & Reel | Get Samples, | |
| SOT23-6L | |||
| SOT23-6L | Tape & Reel |
