Overview

The iW1830 AccuSwitch™ digital PWM converter integrates a highly accurate control circuit with a 700V power MOSFET to provide a complete solution for off-line power conversion at up to 15W of output power.

Renesas' PrimAccurate™ primary-side digital control algorithms eliminate the need for failure-prone optocouplers and ensure excellent cross-regulation accuracy, to enable the longer operating lifetime, high performance and reduced cost required for white goods applications.

The output is designed to smoothly start-up into large capacitors while maintaining a quick turn-on time. It operates in quasi-resonant mode to optimize efficiency and incorporates a low power mode that achieves <50mW of no-load power consumption to meet global energy efficiency regulations. Additional features include full protection from over-temperature, overvoltage and overcurrent conditions as well as EZ-EMI® technology to meet global EMI specifications.

A DiaSIM™ simulation model is available for the iW1830. For more information and where to download, please visit the DiaSIM™ page.

iW1830 Functional Block Diagram

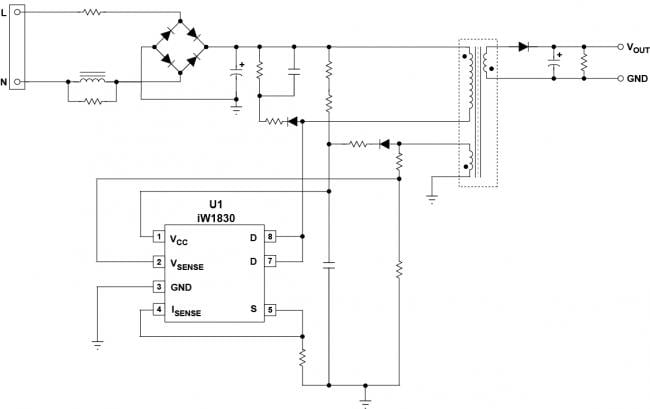

iW1830 Typical Applications Diagram
iW1830 Functional Block Diagram
iW1830 Typical Applications Diagram
  • 12W – 15W Output Power
  • AccuSwitch™ - Integrated 700V Power MOSFET
  • PrimAccurate™ Primary-Side Control
    • No Optocoupler Needed
  • Intelligent Digital Control Loop for Accurate Voltage Cross-Regulation
  • Meets Global Energy Efficiency Standards
    • < 50mW No-Load Power Consumption
    • Quasi-resonant Control for Optimal Efficiency
  • Adaptively Controlled Soft Start-up
    • Fast, Smooth Start-up Into Large Capacitive Loads
  • EZ-EMI™ Design to Meet Global EMI Specifications
  • Fully Protected from Fault Conditions:
    • Over-Temperature Protection
    • Output Overvoltage and Overcurrent
    • Sense-Resistor Short Circuit Protection Application
  • Thermally Efficient PDIP-7 Package to Support High Power

Applications

Documentation

Type Title Date
Product Brief
iW1830 Product Summary
PDF 604 KB
Datasheet
iW1830 Datasheet
PDF 984 KB
Brochure
Industrial Power Management Brochure
PDF 5.51 MB 日本語
Other
Reference Design EBC10097: iW1830-00 and iW671-00 5V/3A Small Size Charger Design
ZIP 3.33 MB
White Paper
White Goods Power Supply Design White Paper
PDF 766 KB
White Paper
White Paper : International External Power Supply Regulations
PDF 279 KB
Other
Reference Design EBC10088: iW1830-00 13.5V/900mA Single-Output Home Appliance Design
ZIP 3.13 MB
Other
Reference Design EBC10091: iW1830-00 12V/1.25A Single-Output Home Appliance Design
ZIP 2.10 MB
Other
Reference Design EBC10092: iW1830-00 12V/800mA and 5V/1A Dual-Output Home Appliance Design
ZIP 2.34 MB
Other
Reference Design EBC10096: iW1830-00 5V/3A Single-Output Home Appliance Design
ZIP 3.02 MB
Other
Reference Design EBC10098: iW1830-00 12V/1000mA and 5V/300mA Dual-Output Home Appliance Design
ZIP 2.27 MB
Manual - Development Tools
NL5 Quick Start Guide
PDF 3.96 MB
12 items

Design & Development

Software & Tools
DiaSIM™ Simulation Models
DiaSIM simulation models let the user test and validate AC/DC power supply designs prior to prototyping.
Downloads
NL5 Quick Start Guide
 Simulator Renesas
1 item

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Models
Type Title Date
Model - Other
iW1830 Simulation Circuit 90-132VAC 13.5V/0.9A Home Appliance Design
ZIP 715 KB
Model - Other
iW1830 DiaSIM™ Model
ZIP 334 KB
2 items
