CONNECT IT! ETHERNET RZ/N
CONNECT IT! ETHERNET RZ/N is the perfect solution kit for developers new to developing with the RZ/N1. The kit comes with not only an evaluation board, but also a JTAG...
Microprocessors Featuring 5 Ethernet Ports and Latest Redundancy Protocol for Industrial Network Master Devices
Jump to Page Section:
Overview
Description
RZ/N1D is a scalable and proven ARM®-based microprocessor that can be used in a variety of applications with the Cortex®-A7 Dual core and a high-speed, high-capacity memory interface. It is implemented Max Five Ethernet ports and the latest redundancy protocol, so it is optimized especially for industrial network equipment such as PLC and network switch.

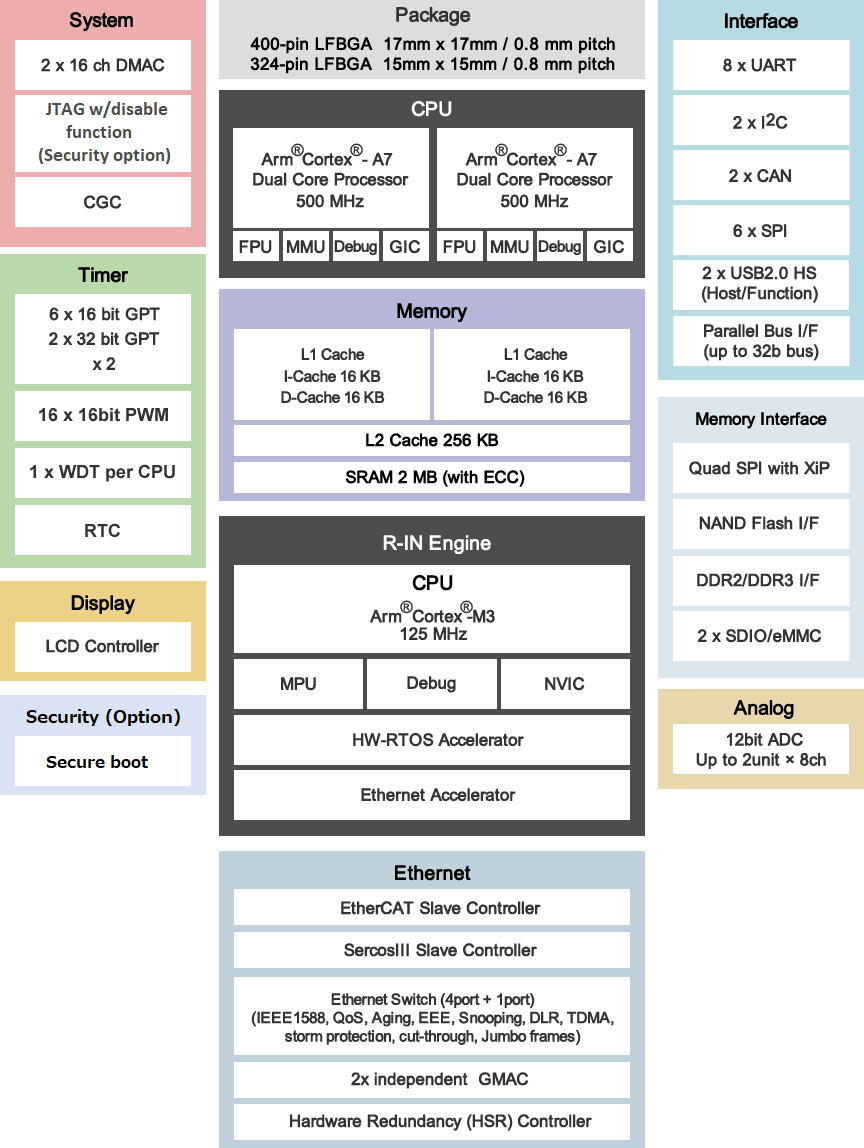

Features
- CPU：Dual Cortex-A7 (500MHz), Cortex-M3(125MHz)
- Voltage: 3V for IO, 1.15V for CPU
- Package: 324 pin LFBGA (15 x15mm, 0.8 pitch), 400 pin LFBGA (17 x17mm, 0.8 pitch)
- Memory: SRAM 2MB with ECC
- DDR: DDR2/3
- Ethernet port: max 5
- Independent GMAC: max 2 (IEEE1588 Compliant)
- PRP/HSR option: Available
- Security option: Available
- Others: PLL, RTC
