The 84320-01 is a general purpose, dual output Crystal-to- 3.3V Differential LVPECL High Frequency Synthesizer. The 84320-01 has a selectable TEST_CLK or crystal inputs. The VCO operates at a frequency range of 620MHz to 780MHz. The VCO frequencyis programmed in steps equal to the value of the input reference or crystal frequency. The VCO and output frequencycan be programmed using the serial or parallel interfaces tothe configuration logic. The low phase noise characteristicsof the 84320-01 make it an ideal clock source for 10 Gigabit Ethernet, SONET, and Serial Attached SCSI applications.

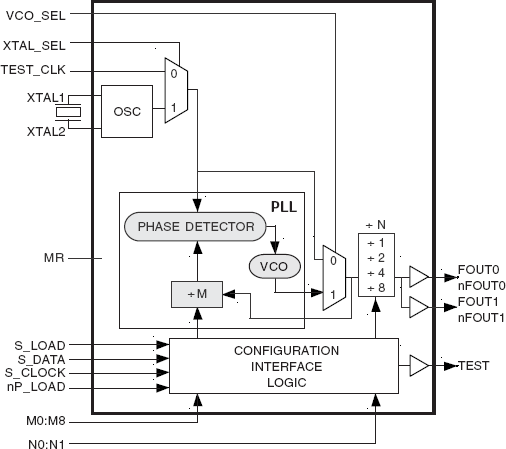

84320-01 - Block Diagram

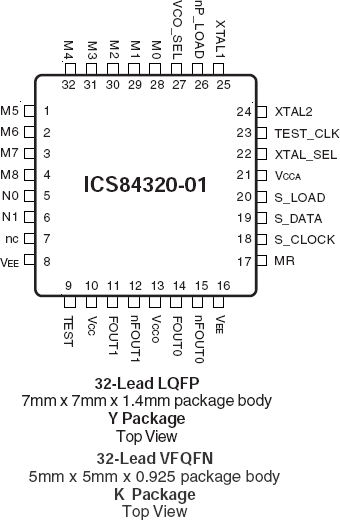

84320-01 - Pinout
84320-01 - Block Diagram
84320-01 - Pinout
  • Dual differential 3.3V LVPECL outputs
  • Selectable crystal oscillator interface or LVCMOS/LVTTL TEST_CLK
  • Output frequency range: 77.5MHz to 780MHz
  • Crystal input frequency range: 14MHz to 40MHz
  • VCO range: 620MHz to 780MHz
  • Parallel or serial interface for programming counter and output dividers
  • Duty cycle: 49% - 51% (N > 1)
  • RMS period jitter: 2ps (typical)
  • RMS phase jitter at 155.52MHz, using a 38.88MHz crystal (12kHz to 20MHz): 2.5ps (typical)
