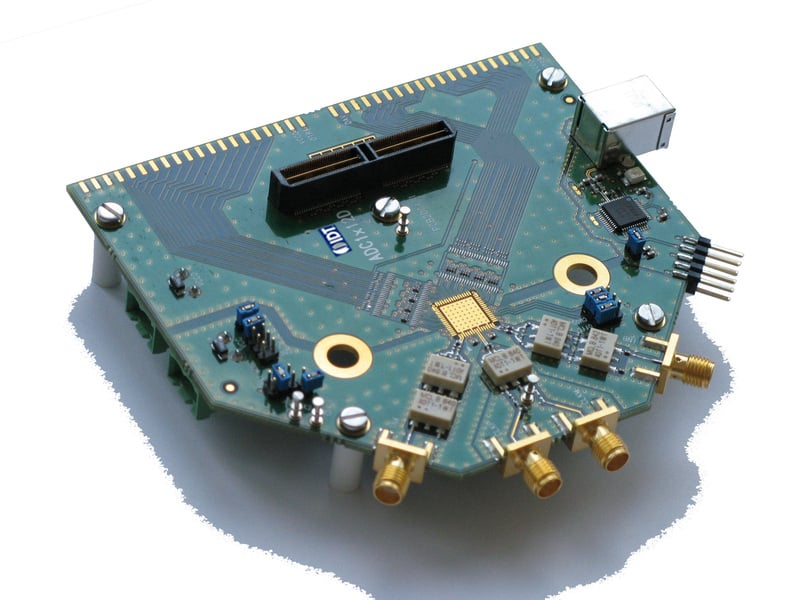

ADC1412D080F2 demo board; LVDS version; SPI, Regulators and LVDS outputs on board
Jump to Page Section:
Overview
Description
IDT's dual channel ADC demonstration board is suitable for dynamic performances evaluation from low to high IF configuration with LVDS DDR outputs. A Data acquisition board can be used to easily analyze the ADC performances in the design and prototyping phase.
Features
- SMA connector for clock and analog inputs signal
- LVDS/DDR Outputs
Product Options
Processing table
| BD0 | BOARD | 0 | I | No |
