SmartBond™ DA14695 Module Bluetooth Low Energy 5.2 Development Kit Pro
The DA14695MOD-00DEVKT-P Bluetooth Low Energy Development Kit Pro for the DA14695 SmartBond™ module includes a motherboard, daughterboard and cables. This kit is...
SmartBond Bluetooth® LE 5.2, High-integration (including USB Charger) Module
Jump to Page Section:
Overview
Description

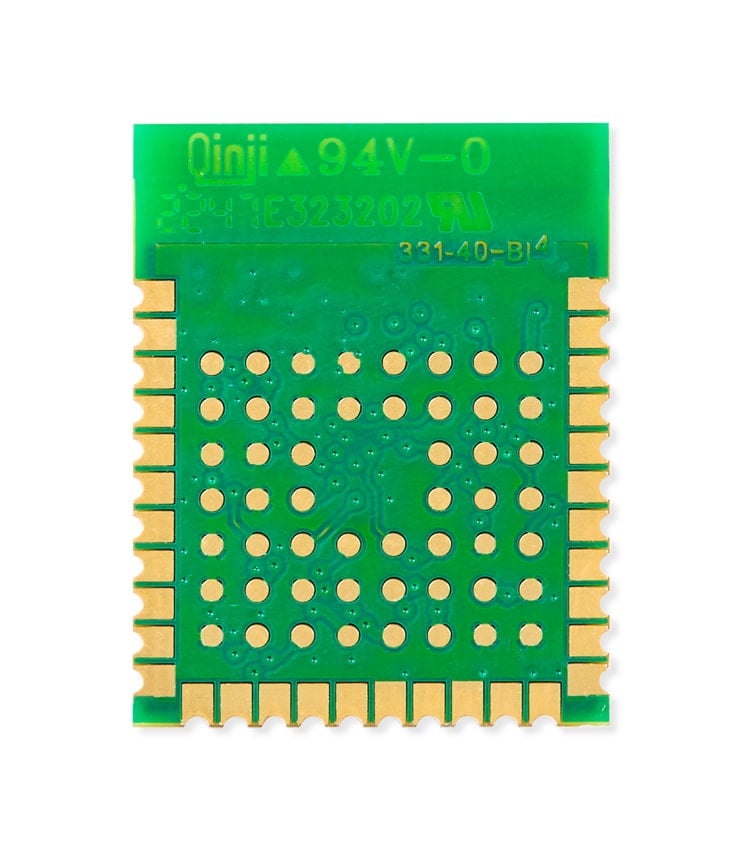

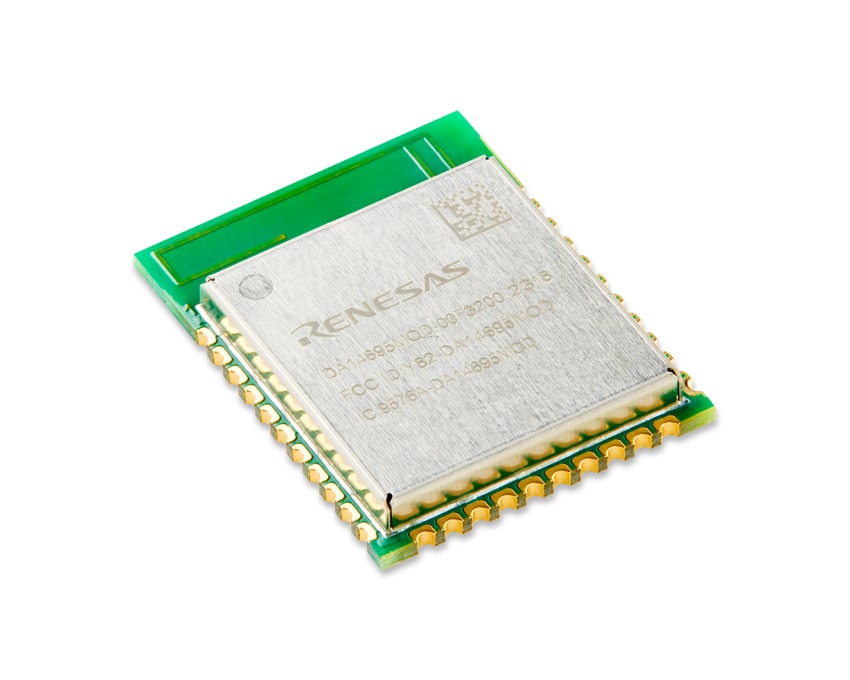

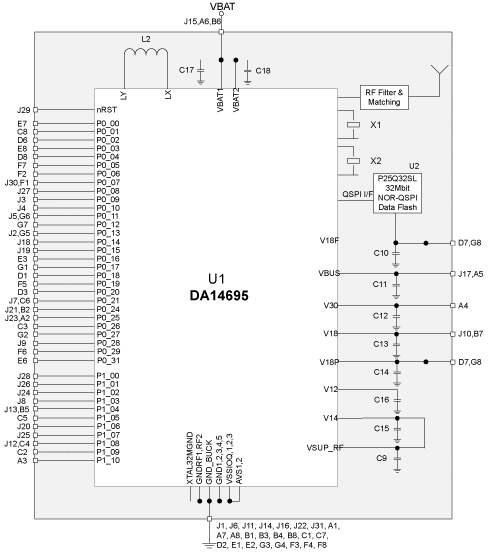

Based on the SmartBond DA14695 Bluetooth® Low Energy (LE) 5.2 system-on-chip (SoC), the DA14695 module brings out all the DA14695 hardware features and capabilities. The module integrates all passives, antenna, and a 32Mbit QSPI FLASH, and is supported by software that is easy to work with. The DA14695 module targets broad market use and will be certified across regions providing significant reductions in development cost and risks, and time-to-market.
Features
- Multi-core: CM33F at 96MHz as application core, CM0+ at 96MHz as configurable MAC, sensor node controller
- Integrated (USB) charger (JEITA support, SW Fuel-gauge)
- Integrated LCD display controller
- Receive sensitivity -96dBm, transmit +6dBm
- 8-ch. 14-bit Sigma-Delta ADC
- 512KB RAM
- 7 power domains for power consumption efficiency (dev kit auto selects for easy use)
- ‘Banking-level’ security
- Bluetooth LE 5.2 and proprietary 2.4GHz protocols
- Rich range of interface options
Applications
Applications
- Connected medical
- Asset tracking (rechargeable)
- Wearables/Fitness band
- HID (Gaming/AR/VR)
- Locationing (rechargeable)
- Resilient ranging/Proximity (WiRa™)
- Home automation
- Industrial automation
- Rechargeable, wireless products
Documentation
|
|
Date | |
|---|---|---|
| PDF 1.42 MB | Datasheet | |
| Manual - Development Tools | ||
| PDF 190 KB | Certificate | |
| PDF 160 KB | Certificate | |
| PDF 94 KB | Certificate | |
| PDF 205 KB | Certificate | |
| PDF 253 KB | Certificate | |
| PDF 146 KB | Certificate | |
| PDF 275 KB | Certificate | |
| Guide | ||
| Other | ||
| Other | ||
| PDF 3.66 MB | Manual - Software | |
| Manual - Development Tools | ||
| Manual - Development Tools | ||
| Manual - Development Tools | ||
| Guide | ||
| PDF 1.17 MB | Application Note | |
| Guide | ||
| PDF 3.20 MB | Manual - Hardware | |
| Application Note | ||
| PDF 243 KB | Guide | |
| Guide | ||
| PDF 439 KB | Device Errata | |
| Guide | ||
| PDF 311 KB | Application Note | |
| Guide | ||
| PDF 525 KB | White Paper | |
| Guide | ||
| Guide | ||
| Guide | ||
| Guide | ||
| Guide | ||
| Guide | ||
| Guide | ||
|
35 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| SmartBond™ emWin support for DA1469x The emWin embedded graphics library developed by SEGGER Microcontroller is now offered with the SmartBond® DA1469x wireless microcontrollers.
|
Imaging | Renesas |
| SmartBond™ Development Tools SmartSnippets™ Studio is a royalty-free software development platform for SmartBond™ devices.
|
Software Package | Renesas |
| SmartBond™ Flash Programmer The Renesas SmartBond™ Flash Programmer tool lets the user program a flash device for the DA1453x, DA14585/586, and DA1469x SoCs (System on Chip).
|
Software Package | Renesas |
3 items
|
||
Boards & Kits
Boards & Kits
SmartBond™ DA14695 Bluetooth® Low Energy 5.2 Module Development Kit Pro - Daughterboard
The DA14695MOD-00F1DB-P is a daughterboard for use with either the DA14695-00HQDEVKT-P or DA14695MOD-00DEVKT-P. The daughterboard can be easily attached to the...
Featured Documents:
SmartBond™ DA14695 Bluetooth® Low Energy 5.2 Development Kit Pro - VFBGA86 Daughterboard
The DA14695 Development Kit Pro is ideal for software developers who want total control over their software development and want to keep an eye on the power consumption...
Featured Documents:
SmartBond™ DA14695 Bluetooth Low Energy 5.2 Development Kit Pro
The DA14695 Development Kit Pro is ideal for software developers who want total control over their software development and want to keep an eye on the power consumption...
Featured Documents:
SmartBond™ Wireless Ranging (WiRa™) Software Development Kit
Renesas' Wireless Ranging (WiRa™) Software Development Kit (SDK) enhances the DA1469x family of Bluetooth® Low Energy (LE) SoCs with highly accurate and reliable...
Featured Documents:
SmartBond™ DA14695 Bluetooth® Low Energy 5.2 USB Development Kit
This USB development kit gives users the flexibility to develop applications in a small and portable form factor. The USB board has an on-board debugger, which in...
Featured Documents:
SmartBond™ DA14699 Bluetooth® Low Energy 5.2 Development Kit Pro - VFBGA100 Daughterboard
The DA14695 Development Kit Pro is ideal for software developers who want total control over their software development and want to keep an eye on the power consumption...
Featured Documents:
Bluetooth Low Energy SoC 16-site Production Line Tool Kit
Renesas offers a production test and programming unit that enables you to reduce the time to ramp-up at a lower cost. The Production Line Tool (PLT) helps to increase...
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| MODULE | Tape & Reel | ||
| MODULE | Tape & Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Companion Products
Videos & Training
Princess Cruise Lines Uses WiRa Technology From Renesas To Deliver A Customized Passenger Experience
Princess CEO John Padgett talks about transforming the cruise industry with the Renesas DA14695 multi-core Bluetooth® SoC with WiRa in their onboard medallion system to monitor 4,000 Wi-Fi access points, 2,000 crew devices and 8,000 sensors in real time.
Video List
WiRa™ Technology
WiRa (Wireless Ranging) technology offers fine-grain, phase-based ranging performance approaching UWB (ultra-wideband) accuracy, while using significantly lower power, extending battery life, and lowering solution cost, including advanced and proprietary algorithms to deliver enhanced performance.
Current Bluetooth® low energy market solutions for distance measurement and positioning are based on measuring the strength or power of the received radio signal, known as Received Signal Strength Indicator (RSSI) measurements. However, these received power measurements may be inherently flawed due to the sensitivity of objects in the radio path blocking or reflecting the radio signals.
WiRa uses a proprietary radar-like implementation for highly improved distance measurement accuracy between Bluetooth LE connected devices. By interleaving Bluetooth LE data packets with constant tone frequency exchanges, the DA1469x on-chip 2.4 GHz radio generates the signals needed for phase-based ranging. The high resolution on-chip sampling of radio waves provides high quality IQ samples that form the input for distance determination. Data processing algorithms filter the data for noise, interference and reflections, to produce the shortest over-the-air signal path length as an accurate distance output.
