36V Radiation Hardened Dual Precision Operational Amplifier
Jump to Page Section:
Overview
Description
The ISL70227SEH is a high precision dual operational amplifier featuring very low noise, low offset voltage, low input bias current, and low temperature drift. These features plus its radiation tolerance, make the ISL70227SEH the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise, and a small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision and analytical instrumentation, active filters, and power supply controls. The ISL70227SEH is available in a 10 Ld hermetic ceramic flatpack and operates over the extended temperature range of -55 °C to +125 °C.
Features
- Electrically screened to DLA SMD# 5962-12223
- Wide supply range: 4.5V to 42V max.
- Very low voltage noise: 2.5nV/√Hz, typ.
- Gain-bandwidth product: 10MHz
- Superb offset drift: 1µV/°C, max
- Operating temperature range: -55 °C to +125 °C
- Low input voltage offset: 10µV, typ.
- Input bias current: 1nA, typ.
- Unity gain stable
- No phase reversal
- Radiation tolerance
- High dose rate: 100krad(Si)
- Low dose rate: 100krad(Si)*
- SEL/SEB LETTH (VS = ±18V): 86.4MeV/mg/cm2
- SEL immune (SOI process)
*Product capability established by initial characterization. The EH version is acceptance tested on a wafer by wafer basis to 50krad(Si) at low dose rate.
Applications
Applications
- Power supply control
- Industrial controls

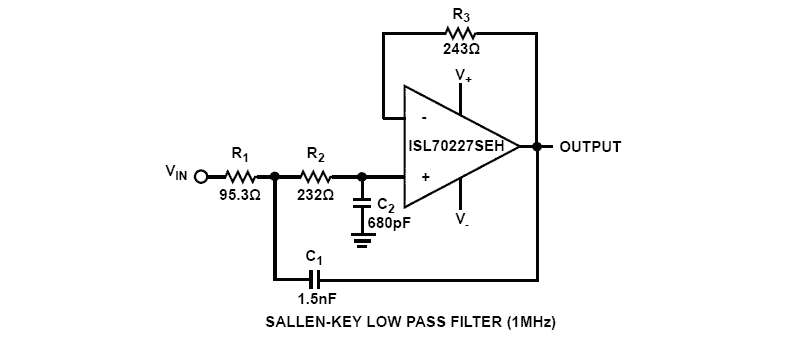

- Active filter blocks
- Data acquisition
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.11 MB | Datasheet | ||
| PDF 263 KB | Application Note | ||
| PDF 338 KB | Application Note | ||
| PDF 467 KB | Brochure | ||
| PDF 4.85 MB | Brochure | ||
| PDF 434 KB | Manual - Development Tools | ||
| Other | |||
| PDF 83 KB | Product Advisory | ||
| PDF 367 KB | Report | ||
| PDF 338 KB | Report | ||
| PDF 1.02 MB | Report | ||
| PDF 533 KB | White Paper | ||
12 items
|
|||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
36V Radiation Hardened Dual Precision Op Amp Evaluation Board
The ISL70227MHEVAL1Z evaluation board is designed to evaluate the performance of the rad hard ISL70227SRH and ISL70227SEH 36V precision low power operational...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| CFP | Tray | 1 | |||
| CFP | Tray | 25 | 5962R1222301VXC | ||
| 100 | 5962R1222301V9A | ||||
| Die Waffle Pack | 5 |
