Automotive GreenPAK™ Programmable Mixed-Signal ICs
Jump to Page Section:
Automotive GreenPAK™ is a cost-effective non-volatile memory (NVM) configurable device that allows automotive designers to integrate many system functions into a single AEC-Q100 qualified IC. With GreenPAK, designers can quickly reduce system cost, component count and power consumption as well as supply chain and reliability issues.
Using the free GUI-based Go Configure Software Hub and the GreenPAK Development Kit, the process of designing custom circuits is free, quick and it requires no programming language. Renesas provides the GreenPAK Application notes library and the GreenPAK Cookbook featuring design examples as well as explanations of features and blocks within the Automotive GreenPAK IC.
Use Case: Voltage monitor & reset for infotainment
Benefits
- PCB area saving: Combine multiple discrete ICs into one small package
- Total BOM cost savings: By using fewer components
- Small-scale custom AEC-Q100 IC without NRE
- Short lead time: 18 weeks for MP
- Easy to use, GUI design tool available
Product Selection Table
Processing table
GPIOs (#) |
LUTs (Max) (#) |
DFF (Max) (#) |
DCMP/PWM |
ACMP Analog Comparator (#) |
CNT/DLY (Max) (#) |
# of Programable Delays (#) |
Pipe Delay |
Interface |
Nominal VDD |
Oscillator Type |
Temperature Sensor (ch) (#) |
Pkg. Dimensions (mm) |
Automotive Rating |
Special Features |
|

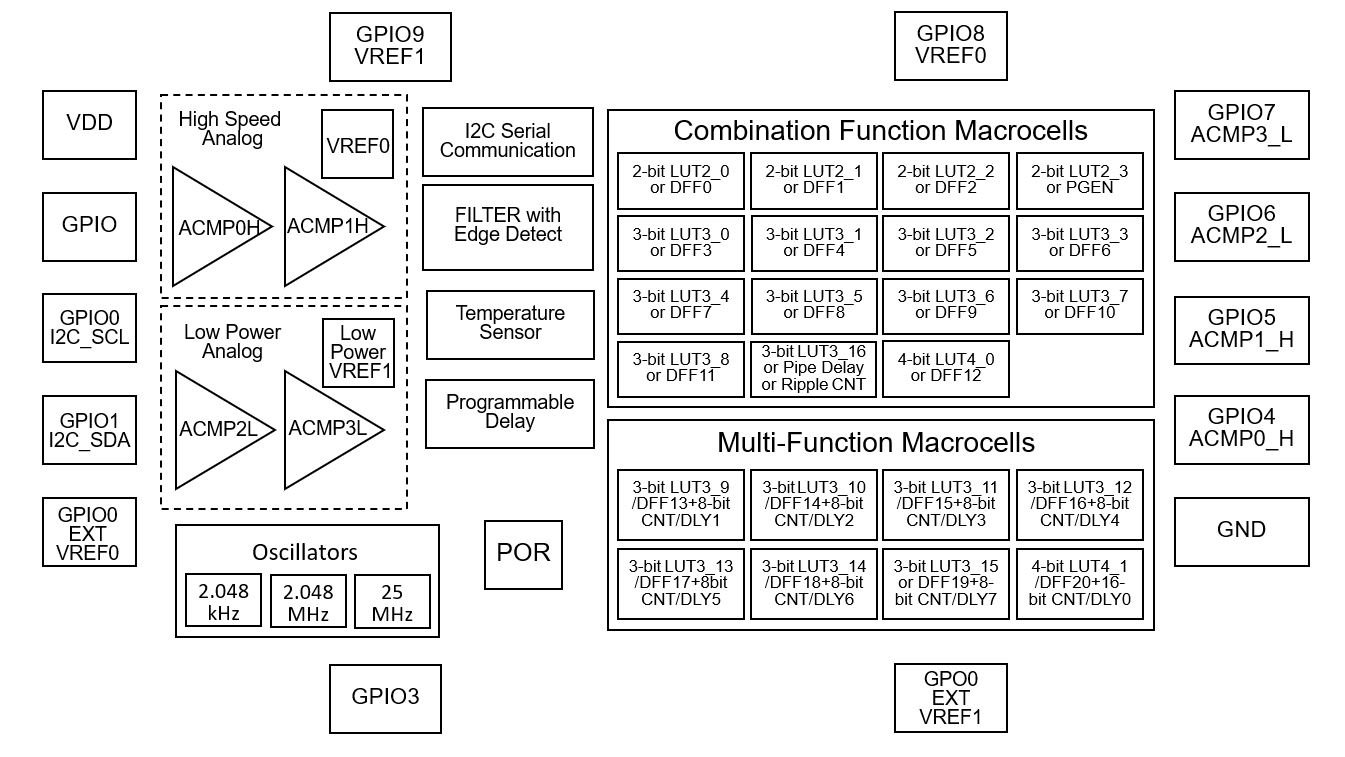

|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | |||||||||||||||
| Automotive GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual supply | 17 | 17 | 8 | 4 | 7 | 1 | 16-stage | I2C | 1.71-5.5 | Conf. OSC, RC OSC, Crystal OSC | 1 | 3.5 x 3.5 | AEC-Q100 (Grade 1) | ASM (8 states), Pattern Generator | |
| Automotive GreenPAK Programmable Mixed-signal Matrix | 18 | 26 | 12 | 3 | 6 | 10 | 2 | 2x 16-stage | SPI | 1.71-3.6 | RC OSC, LF OSC, Ring OSC | 6.5 x 6.4 | AEC-Q100 (Grade 2) | 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator | |
| Automotive GreenPAK Programmable Mixed-signal Matrix | 18 | 26 | 12 | 3 | 6 | 10 | 2 | 2x 16-stage | SPI | 1.71-5 | RC OSC, LF OSC, Ring OSC | 3.5 x 3.5 | AEC-Q100 (Grade 1) | 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator | |
| Automotive GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability | 17 | 19 | 17 | 4 | 8 | 1 | 16-stage | I2C | 2.3-5.5 | RC OSC, LF OSC, Ring OSC | 1 | 6.5 x 6.4 | AEC-Q100 (Grade 2) | Pattern Generator | |
| Automotive GreenPAK™ Programmable Mixed-signal Matrix | 12 | 23 | 21 | 4 | 8 | 1 | 16-stage | I2C | 2.3-5.5 | RC OSC, LF OSC, Ring OSC | 1 | 3.0 x 3.0 | AEC-Q100 (Grade 2) | Pattern Generator | |
| Automotive GreenPAK™ Programmable Mixed-signal Matrix | 12 | 23 | 21 | 4 | 8 | 1 | 16-stage | I2C | 2.3-5.5 | RC OSC, LF OSC, Ring OSC | 1 | 3.0 x 3.0 | AEC-Q100 (Grade 1) | Pattern Generator | |
| Automotive GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply | 28 | 12 | 5 | 4 | 5 | 1 | 16-stage | I2C | 2.3-5.5 | RC OSC, LF OSC, Ring OSC, Crystal OSC | 1 | 5.0 x 5.0 | AEC-Q100 (Grade 1) | ASM (12 states), Pattern Generator |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Documentation
|
|
Date | |
|---|---|---|
| PDF 4.70 MB 简体中文 | Brochure | |
| PDF 760 KB | Application Note | |
| PDF 410 KB | Application Note | |
| PDF 248 KB | Application Note | |
| PDF 815 KB | Application Note | |
| PDF 6.56 MB | Brochure | |
| PDF 916 KB | Application Note | |
| PDF 1.14 MB | Application Note | |
| PDF 876 KB | Application Note | |
