Overview

The 94241 is a single chip timing control hub for desktop designs using VIA PL133-T style chipset with Intel differential PIII processor. It provides all necessary clock signals for such a system. The 94241 is part of a whole new line of ICS clock generators and buffers called TCH™ (Timing Control Hub). ICS is the first to introduce a whole product line which offers full programmability and flexibility on a single clock device. This part incorporates ICS's newest clock technology with more robust features and functionality. Employing the use of a serially programmable I2C interface, this device can adjust the output clocks by configuring the frequency setting, the output divider ratios, selecting the ideal spread percentage, the output skew, the output strength, and enabling/disabling each individual output clock. TCH also incorporates ICS's Watchdog Timer technology in having a frequency reset feature to provide a safe setting under unstable system conditions.

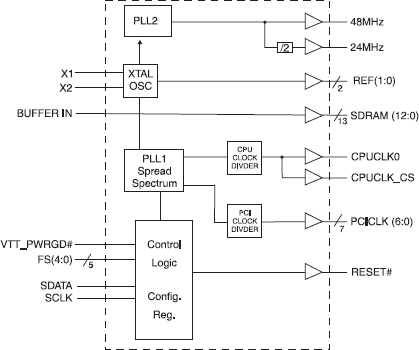

94241 - Block Diagram

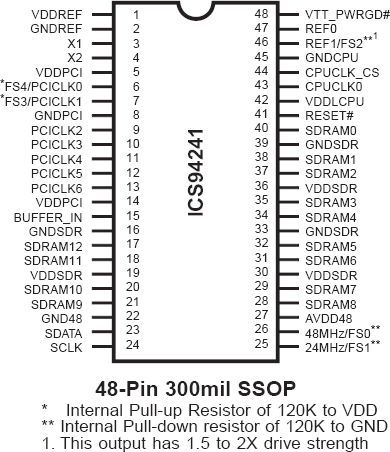

94241 - Pinout
94241 - Block Diagram
94241 - Pinout
  • 2 - CPUs @2.5V
  • 13 - SDRAM @ 3.3V
  • 7 - PCI @3.3V,
  • 1 - 48MHz, @3.3V
  • 1 - 24MHz @ 3.3V
  • 2 - REF @3.3V, 14.318MHz.
  • Programmable output frequency
  • Programmable output rise/fall time
  • Programmable output to output skew
  • Programmable spread spectrum for EMI control
  • Real time system reset output
  • Watchdog timer technology to reset system if over-clocking causes malfunction
  • Uses external 14.318MHz crystal
  • CPU - CPU: <175ps
  • SDRAM - SDRAM: <500ps
  • PCI - PCI: <500ps
  • CPU-SDRAM: <500ps
  • CPU(early)-PCI: Min=1.0ns, Typ=2.0ns, Max=4.0ns

Documentation

Title Type Date
94241 Datasheet
PDF217 KB
Datasheet
PDN# : K-13-01R2 PRODUCT DISCONTINUANCE NOTICE
PDF125 KB
End Of Life Notice
PDN# : K-13-01R1 PRODUCT DISCONTINUANCE NOTICE
PDF125 KB
End Of Life Notice
PDN# : K-13-01 PRODUCT DISCONTINUANCE NOTICE
PDF122 KB
End Of Life Notice
PCN# : TB1303-02 Change of Tape & Reel Packing Method for Selective Products
PDF361 KB
Product Change Notice

Design & Development

Software Downloads

Title Type Date
PDN# : K-13-01R2 PRODUCT DISCONTINUANCE NOTICE
PDF125 KB
End Of Life Notice
PDN# : K-13-01R1 PRODUCT DISCONTINUANCE NOTICE
PDF125 KB
End Of Life Notice
PDN# : K-13-01 PRODUCT DISCONTINUANCE NOTICE
PDF122 KB
End Of Life Notice

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Product Options

    Processing table
    Part Number
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Buy / Sample
    94241AFLFT
    block_flippedObsolete
    memory
    view_in_ar
    		SSOP 48 C Yes Reel
