概要
Description
The SLG47513 provides a small, low voltage, and low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) Non-Volatile Memory (NVM) to configure the interconnect logic, the IO Pins, and the macrocells of the SLG47513. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.
特長
- Read Back Protection (Read Lock)
- Power Supply: 1.0V to 1.65V
- Operating Temperature Range: -40°C to 85°C
- RoHS Compliant / Halogen-Free

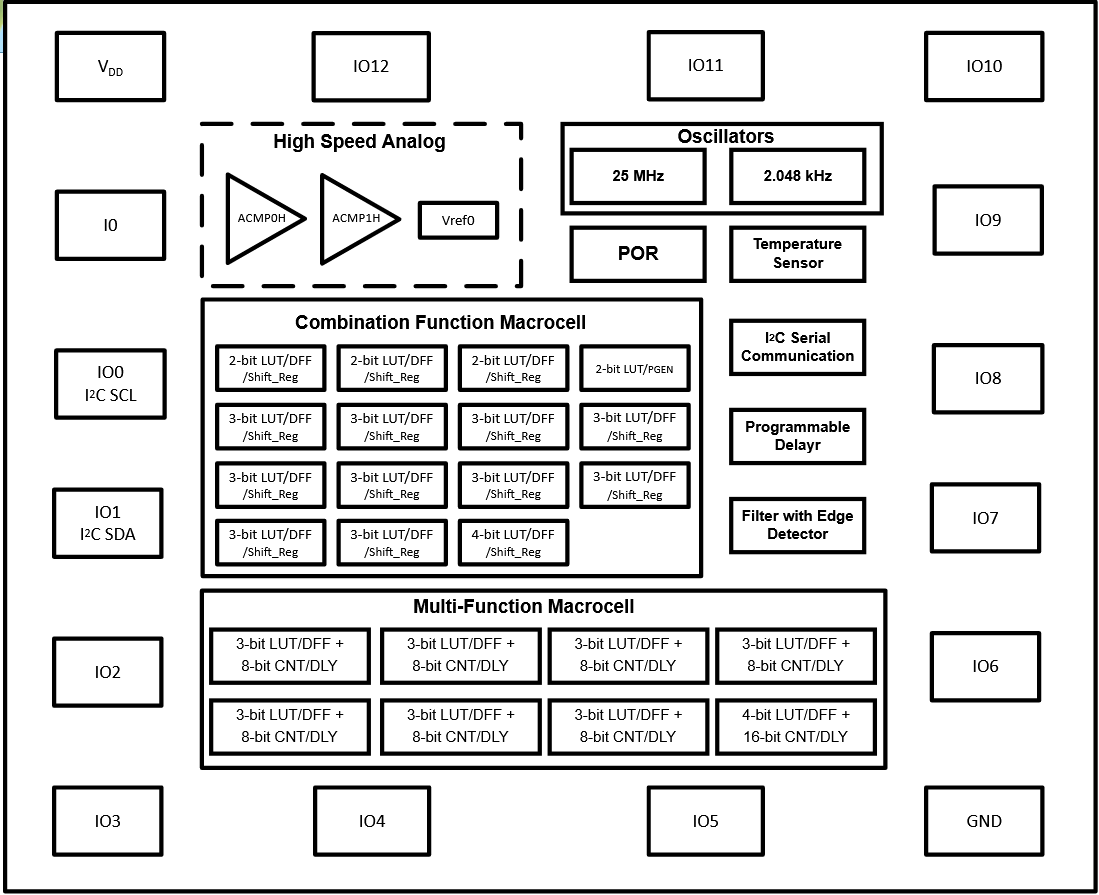

Macrocells Overview
- Two High Speed General Purpose Analog Comparators (ACMPxH);
- Integrated Voltage Reference
- Fifteen Combination Function Macrocells:
- Three 2-Bit LUT or (DFF/LATCH) or Shift Register;
- One Selectable Programmable Pattern Generator or 2-bit LUT
- Ten 3-Bit LUT or (DFF/LATCH) with Set/Reset or Shift Register;
- One 4-Bit LUT or (DFF/LATCH) with Set/Reset or Shift Register;
- Eight Multi-Function Macrocells:
- Seven Selectable DFF/Latch or 3-bit LUTs + 8-bit Delay/Counters;
- One Selectable DFF/Latch or 4-bit LUT + 16-bit Delay/Counter/FSM;
- I²C Communication;
- Programmable Delay with Edge Detector Output;
- Deglitch Filter or Edge Detector;
- Two Oscillators (OSC):
- 2.048 kHz Oscillator;
- 25 MHz Oscillator;
- Analog Temperature Sensor;
- Power-On Reset (POR) with CRC.
アプリケーション
アプリケーション
- Smartphones and fitness bands
- Portable and handhald electronics
- Home appliances and IoT
- Personal computers and servers
- PC peripherals
- Data communications equipment
- Robotics
- Toys
- Low voltage applications
設計・開発
ソフトウェア／ツール
ソフトウェア／ツール
| Go Configure™ Software HubGo Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices. | Software Package | ルネサス |
ボード＆キット
ボード＆キット
GreenPAK SLG47513 Development Kit with Socket Adapter
The SLG47513M-SKT includes the SLG4SA16LL-16x16 socket adapter and 50 SLG47513M samples.
GreenPAK先行開発ボード
GreenPAKデバイスの完全なプログラミング、エミュレーション、およびテスト機能を提供します。SLG46xxxX-SKTソケットキットに使用します。GreenPAK Designerソフトウェアと併用することで、GreenPAK Advanced Development Boardは以下のことを可能にします...
GreenPAK Logic Level Adapter Board
The GreenPAK Logic Level Adapter Board is designed to provide the full functionality of the GreenPAK Advanced Development Board when working with the SLG475x2V /...
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
本デバイスは、ルネサス事業所でのプログラム書き込みが可能です。カスタムプログラムユーティリティをお試しください。
Processing table
| MSTQFN | Tape & Reel | サンプルを入手, |
