概要

The HXR8201 Trans-impedance Limiting Amplifier array is a member of IDT’s family of Optical Receiver Transmitter Array (ORTA) products targeted at the single channel fiber optic links market. Together with a discrete PiN detector array, high-capacity, high-availability optical links can be designed for datacom applications. The product is ideal for 100G to 25G fan-out applications. The 3.3V SiGe device integrates the transimpedance preamplifier, the limiting post-amplifier, and a versatile CML output stage for four optical channels.

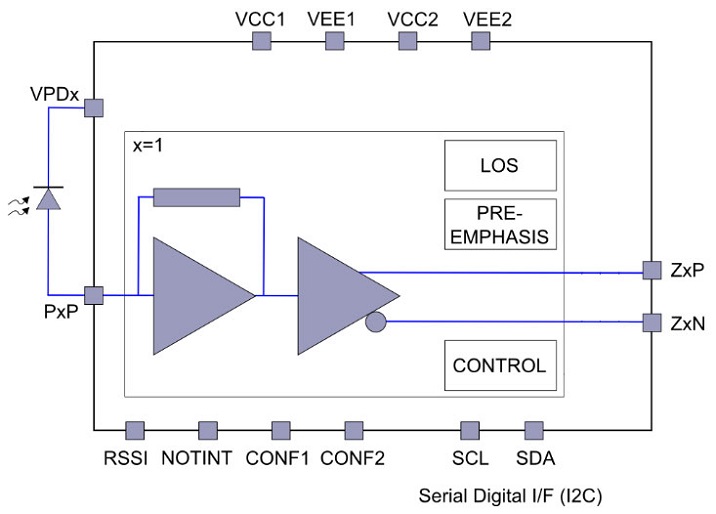

HXR8201 - Block Diagram
HXR8201 - Block Diagram
  • 60uApp receiver sensitivity for 10-12 BER at 28Gbps
  • Greater than 2.4mApp overload
  • 141mW per channel power consumption with low power setting
  • Automatic Gain and Threshold Controls
  • Adjustable output swing size and pre-emphasis mode
  • Signal Detect Programmable threshold with SQUELCH function
  • Independent RSSI
  • Optimized for isolated and common cathode photo-detector arrays from multiple vendors
  • Control lines accessible on both sides of the chip
  • QSFP MSA compliance

ドキュメント

タイトル
分類 日付
HXR8201 Short-Form Datasheet
PDF 205 KB 		データシート－簡略版
PLC# : 230010 End-of-Life (EOL) process on select part numbers
PDF 1.11 MB 		EOL通知
PCN# : 210015 Change of Waffle Pack Label Display
PDF 134 KB 		製品変更通知
3 items

設計・開発

ソフトウェアダウンロード

タイトル
分類 日付
PLC# : 230010 End-of-Life (EOL) process on select part numbers
PDF 1.11 MB 		EOL通知
1 item

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    ご購入 / サンプル
    型名
    HXR8201-DNT
    block_flippedEOL品
    memory
    view_in_ar
    		WAFER C WFP
    HXR8201-EVB
    block_flippedEOL品
    memory
    view_in_ar
    		BOARD C Box
