GreenPAK™ Programmable Mixed-signal Matrix
Jump to Page Section:
Overview
Description
The SLG47512 provides a small, low voltage, and low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) Non-Volatile Memory (NVM) to configure the interconnect logic, the IO Pins, and the macrocells of the SLG47512. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.
Features
- Read Back Protection (Read Lock)
- Power Supply: 1.0V to 1.65V
- Operating Temperature Range: -40°C to 85°C
- RoHS Compliant / Halogen-Free

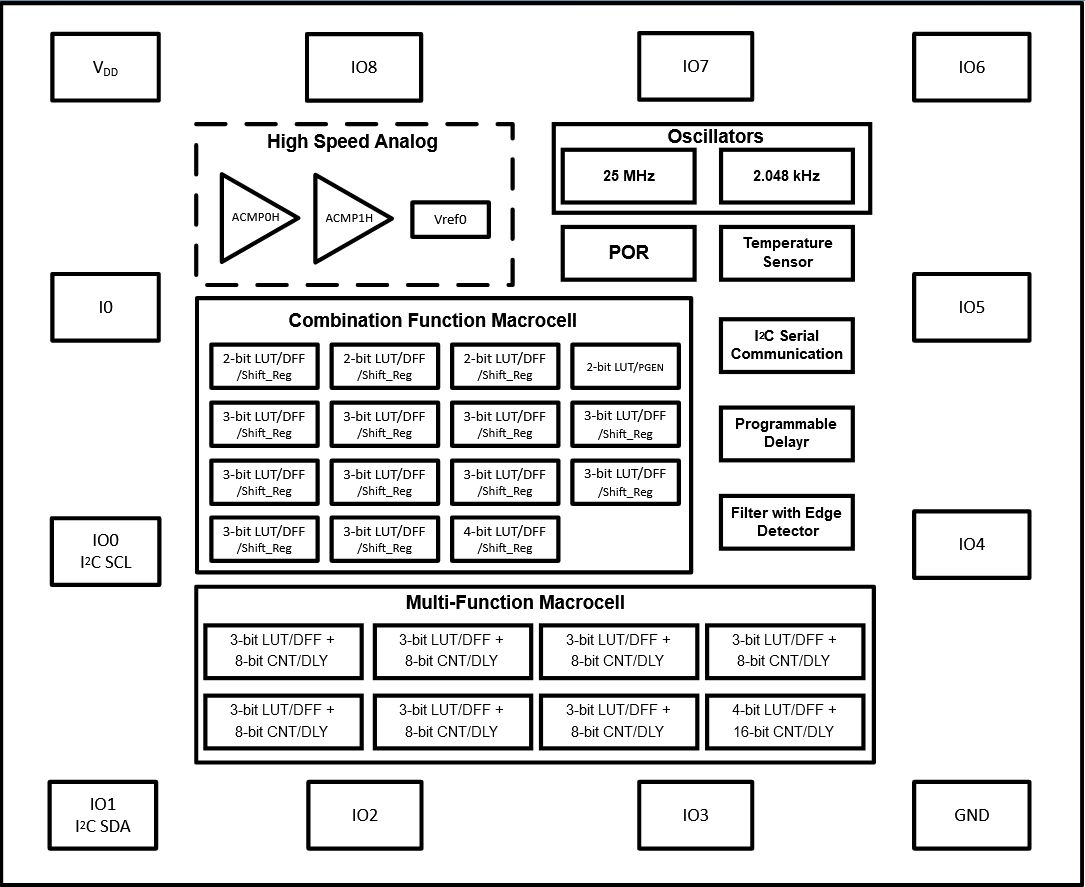

Macrocells Overview
- Two High Speed General Purpose Analog Comparators (ACMPxH);
- Integrated Voltage Reference
- Fifteen Combination Function Macrocells:
- Three 2-Bit LUT or (DFF/LATCH) or Shift Register;
- One Selectable Programmable Pattern Generator or 2-bit LUT
- Ten 3-Bit LUT or (DFF/LATCH) with Set/Reset or Shift Register;
- One 4-Bit LUT or (DFF/LATCH) with Set/Reset or Shift Register;
- Eight Multi-Function Macrocells:
- Seven Selectable DFF/Latch or 3-bit LUTs + 8-bit Delay/Counters;
- One Selectable DFF/Latch or 4-bit LUT + 16-bit Delay/Counter/FSM;
- I²C Communication;
- Programmable Delay with Edge Detector Output;
- Deglitch Filter or Edge Detector;
- Two Oscillators (OSC):
- 2.048 kHz Oscillator;
- 25 MHz Oscillator;
- Analog Temperature Sensor;
- Power-On Reset (POR) with CRC.
Applications
Applications
- Smartphones and fitness bands
- Portable and handheld electronics
- Home appliances and IoT
- Personal computers and servers
- PC peripherals
- Data communications equipment
- Robotics
- Toys
- Low voltage applications
Design & Development
Software & Tools
Software & Tools
| Go Configure™ Software HubGo Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices. | Software Package | Renesas |
Boards & Kits
Boards & Kits
GreenPAK SLG47512 Development Kit with Socket Adapter
The SLG47512V-SKT includes the SLG4SA12-16x16 socket adapter and 50 SLG47512V samples.
GreenPAK Advanced Development Board
Provides full programming, emulation, and testing functions for GreenPAK devices. For use with SLG46xxxX-SKT sockets kits.
Working in tandem with the GreenPAK...
Featured Documents:
GreenPAK Logic Level Adapter Board
The Logic Level Adapter Board is designed to provide the full functionality of the Advanced Development Board when working with the SLG475x2V / SLG475x3M.
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
