The iW1790 is a 27W output, high-performance AC/DC RapidCharge™ power supply controller that integrates Renesas' XM-Comm technology, removing all optocouplers from travel adapters to reduce cost and improve reliability. The device also uses advanced source charging technology to integrate additional high voltage components, further reducing the overall BOM cost in travel adapter applications. The device supports Qualcomm Quick Charge 3.0 and 2.0 along with other rapid charging protocols.

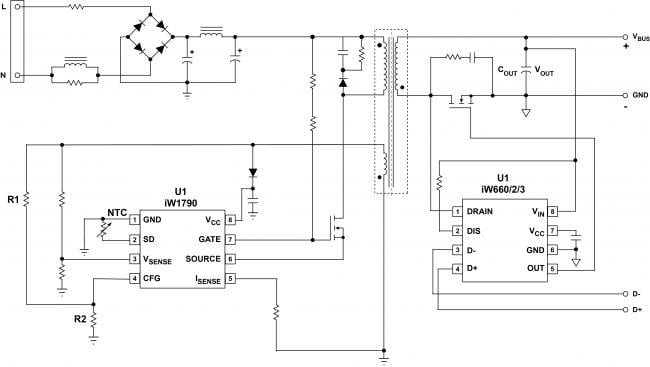

It is optimized to work with the iW662 secondary-side device, which integrates a RapidCharge interface IC and a synchronous rectifier controller. The iW662 uses Renesas' XM-Comm technology to transmit all necessary information to the iW1790, including voltage requests, output current limits, output voltage undershoot, output overvoltage, and fault and reset signals.
A full array of protection features includes Renesas' SmartDefender™ advanced hiccup technology to address soft short circuits in charger cables and connectors, helping to prevent excessive heat build-up and damage.
Qualcomm® Quick Charge™ is a product of Qualcomm Technologies, Inc.
Type | Date | |
---|---|---|
PDF 540 KB | Product Brief | |
PDF 5.51 MB 日本語 | Brochure | |
PDF 983 KB | Datasheet | |
ZIP 3.13 MB | Other | |
ZIP 3.70 MB | Other | |
5 items
|
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Select an orderable part number:
Orderable Part ID | Sample |
---|---|
iW1790-00 | Availability |
iW1790-07 | Availability |
iW1790-08 | Availability |
iW1790-08B | Availability |
iW1790-09 | Availability |
iW1790-09B | Availability |
iW1790-12 | Availability |
iW1790-12B | Availability |
iW1790-18 | Availability |
iW1790-18B | Availability |
iW1790-19 | Availability |
iW1790-19B | Availability |
