概要

The P9242-R-EVK is a turnkey 15 Watt, Qi-compliant wireless power transmitter reference kit for fast prototyping and design integration. The kit consists of an easy-to-use reference board and comprehensive support collateral that significantly eases design-in effort and minimizes time-to-market.

An associated layout module enables direct instantiation on to a system board, while an optimized and fully-tested Bill-of-Materials (BOM) takes the guess-work out of component selection. The P9242-R based solution is well-suited for a wide range of applications, including accessories, furniture, medical devices, Tablets and other portable devices still hindered by traditional contact-based charging bases or cables.

Need a wireless power receiver too? See the P9221-R-EVK.

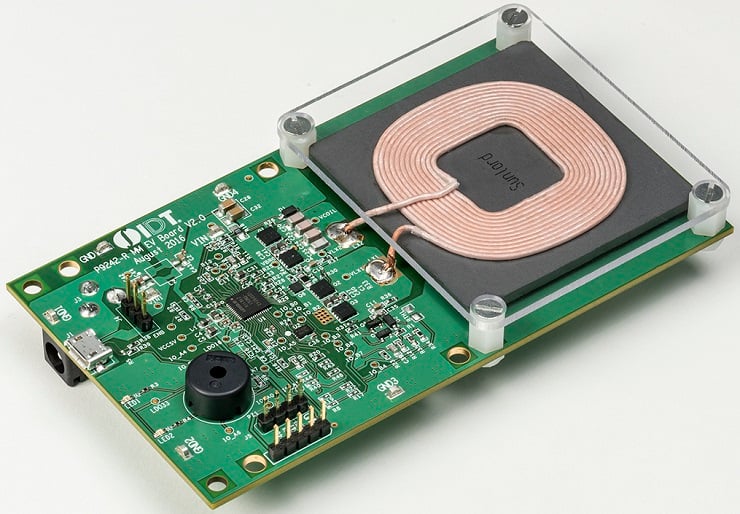

P9242-R-EVK Board (Angle view)

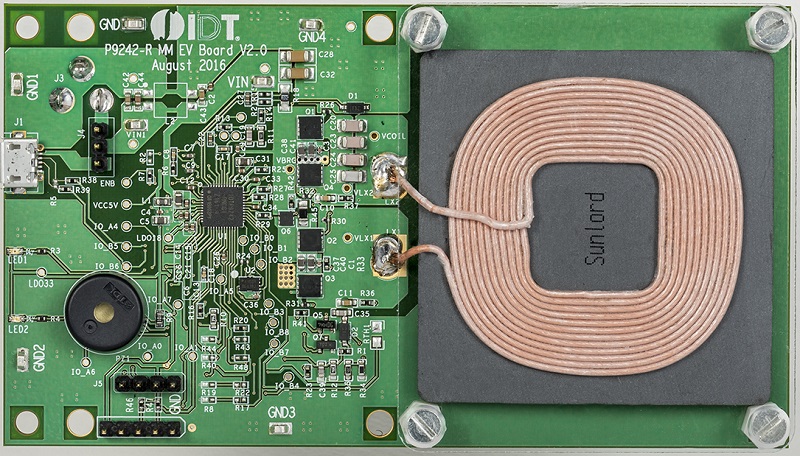

P9242-R-EVK Board (top view)
P9242-R-EVK P9221-R-EVK 15W Wireless Power Kits

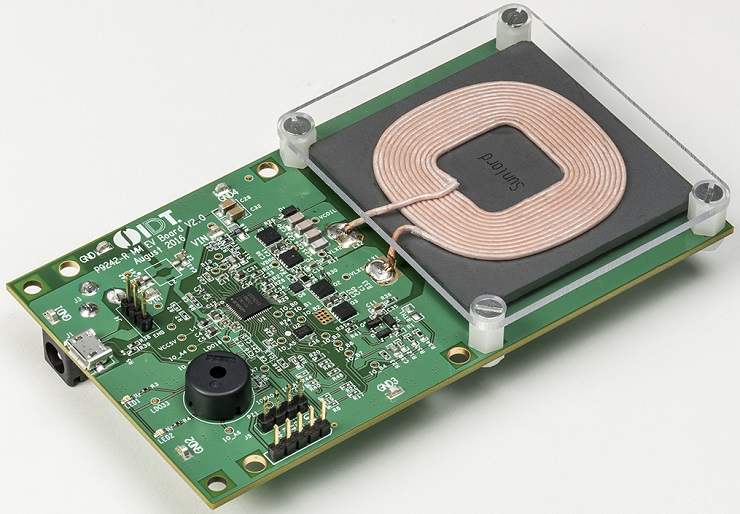

P9242-R-EVK Board (Angle view)
P9242-R-EVK Board (top view)
P9242-R-EVK P9221-R-EVK 15W Wireless Power Kits
  • WPC 1.2.2 (Qi) compliant for interoperability w/ other devices
  • Supports MP-A2 coil configuration
  • Integrated step-down regulator
  • Simultaneous Voltage & Current demodulation scheme for robust communication
  • Compact form factor for fast prototyping
  • Layout module provided for direct copy to system board
  • High-quality transmitter coil by Sunlord
  • Supported by extensive library of digital support collateral (see below)
タイトル カテゴリ ご購入/サンプル
P9221-RWPC 1.2.2 Compliant, Wireless Charging Receiver for 15W Applications
P9221-R Datasheet
 ワイヤレス給電レシーバ, 電磁誘導 ご購入/お見積
P9242-RWPC 1.2 Compliant, Wireless Charging Transmitter for 15W Applications
P9242-R Datasheet
 ワイヤレス給電トランスミッタ, 電磁誘導 ご購入/お見積

ドキュメント

タイトル 分類 日付
P9242-R-EVK Evaluation Board User Manual
PDF1.34 MB
マニュアル－ハードウェア
P9242-R-EVK 4-layer Gerber Files
ZIP570 KB
エンジニアリング
P9242-R-EVK Bill-of-materials (BOM)
XLSX21 KB
エンジニアリング
P9242-R Layout Guidelines
PDF936 KB
ガイド
Wireless Power Products Overview
PDF1.14 MB
概要
P9221-R and P9242-R Wireless Power Reference Kits for 15W Applications
PDF253 KB
製品概要
P9242-R Wireless Power Transmitter for 15W Applications
PDF307 KB
製品概要
P9242-R-EVK Allegro Schematic DSN File
DSN497 KB
回路図
P9242-R-EVK PDF Schematic
PDF96 KB
回路図
Tuning Qi and AirFuel / PMA Inductive Resonance Circuits for Optimal Efficiency
PDF627 KB
ホワイトペーパー

設計・開発
