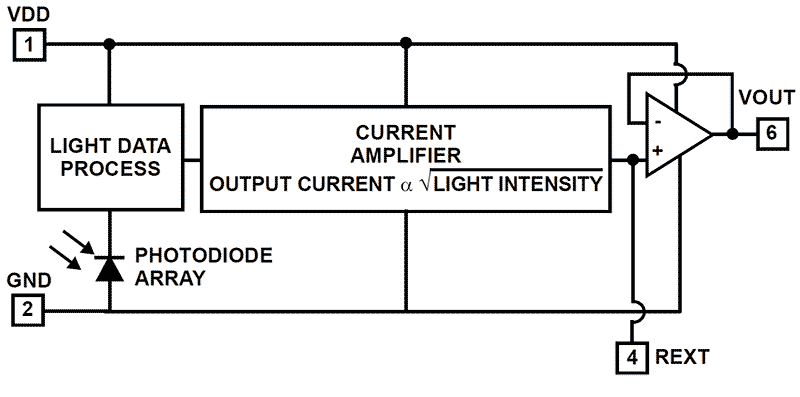

The ISL29102 is a low cost, light-to-voltage silicon optical sensor combining a photodiode array, a nonlinear current amplifier, and a micro-power op amp on a single monolithic IC. Similar to human eyes, the photodiode array has peak sensitivity at 550nm and spans from 400nm to 600nm, rejecting UV light and IR light. The input luminance range is from 0.3 lux to 10,000 lux. The integrated nonlinear current amplifier boosts and converts the photodiode signal in a square root fashion, extending the light input dynamic range, while maintaining excellent sensitivity at dim conditions with low lux levels. The device consumes minimal power over a wide range of ambient lux levels because the current consumption ramps at a square root fashion. A dark-current compensation circuit minimizes the effect of temperature-dependent leakage currents in the absence of light, improving the light sensitivity at low lux levels while maintaining excellent sensitivity at low lux levels. The built-in 1μA op amp gives the ISL29102 an output voltage driving advantage for heavier loads. The ISL29102 is housed in an ultra-compact 2mm x 2.1mm ODFN plastic case surface mount package. Operation is rated from -40 °C to +85 °C.

Features

  • Square root voltage output
  • 0.3 lux to 10,000 lux range
  • 1.8V to 3.3V supply range
  • Close to human eye spectral response
  • Fast response time
  • Internal temperature compensation
  • Good IR rejection
  • Low supply current
  • Operating temperature range -40 °C to +85 °C
  • 6 Ld ODFN: 2mm x 2.1mm x 0.7mm
  • Pb-free (RoHS compliant)

Applications

  • Display and keypad dimming for:
    • Mobile devices: Smartphones, wearables, PDAs, GPS
    • Computing devices: Notebooks PCs, MacBooks, tablets
    • Consumer devices: LCD-TVs, digital cameras
  • Industrial, home automation and medical light sensing

tuneProduct Options

Part Number Part Status Pkg. Type Carrier Type MOQ Buy Sample
Obsolete HODFN Reel 3000
Availability
Obsolete DODFN Reel 250
Availability

descriptionDocumentation

Title language Type Format File Size Date
Datasheets & Errata
star ISL29102 Datasheet Datasheet PDF 878 KB
Application Notes & White Papers
AN1422: Light Sensor Applications Application Note PDF 248 KB
PCNs & PDNs
PLC21035 - End of Life Notice Product Life Cycle Notice PDF 1.17 MB
PLC18009 - Q2 Standard EOL Notice Product Life Cycle Notice PDF 345 KB
PCN12015 - Moisture Sensitivity Level Change for the Listed Intersil 6-lead ODFN Packaged Products Product Change Notice PDF 112 KB
PCN10053 - Alternate Manufacturing Site for Assembly of Intersil ODFN Packaged Products - Hana Microelectronics Public Co., Ltd. Lamphun, Thailand Product Change Notice PDF 95 KB
