The iW1608 is an AC/DC controller optimized for universal input voltage applications. The device offers a unique output current limit configuration that monitors the input voltage via the resistor divider (CFG pin voltage VCFG) in real time and adjusts the output current limit accordingly.
Travel adapters designed with the iW1608 can provide higher power at 230VAC input voltage and can reduce the current limit at low supply voltage (90VAC) for lower power dissipation and safe operation during peak loss conditions. This enables the use of a smaller adapter case size while maintaining high current output at high line. The adjustable current limit also provides additional application possibilities, including peak charging using a temperature sensor to decrease the output current after the adapter reaches a maximum allowed temperature.
The iW1608 also offers configurable light load operating modes where designers can optimize their circuits for either low no-load power consumption or fast DLR response. For applications that require both, the iW1608 can work with the iW676 digital synchronous rectifier with integrated active voltage positioning (AVP) control, enabling <30mW no-load standby power and fast DLR response time.
The iW1608 integrates a full array of protection features including output overcurrent, short circuit, over-temperature, and output overvoltage protection circuits.

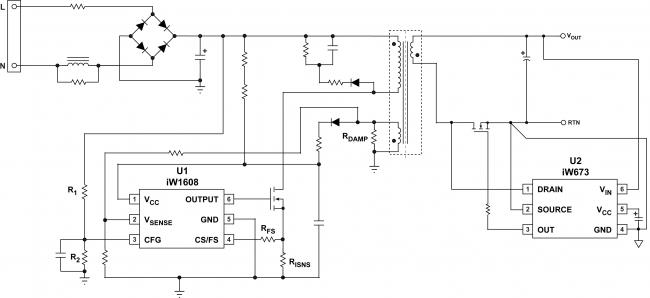

Works with iW673 digital synchronous rectifier for low cost, high-efficiency applications.
Works with iW676-30 digital synchronous rectifier with active voltage positioning control for high efficiency and <30mW no-load power consumption.
|PDF 418 KB||Product Brief|
|PDF 5.51 MB 日本語||Brochure|
|PDF 1.17 MB||Datasheet|
Reference Design EBC10228: iW1608-00B and iW673-20 5.5V/2.5A and 5.5V/2A Dual Current Limit Charger DesignZIP 2.90 MB
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
